K+ Ovens

K+ Ovens

A robust and reliable oven range is the backbone of every Western kitchen. For busy restaurants, a heavy-duty oven is essential. The K+ oven’s 6mm solid base ensures even heat distribution, which is necessary to maintain a consistent temperature during busy service periods. This oven is rated at 29MJ and has a temperature range of 60-260°C.

The K+ oven range is equipped with powerful 30MJ open cooktop burners, perfect for fast pan work. It also features a convenient pilot light for all burners and a full-length removal stainless steel drip tray located under the burners for easy cleaning. You can combine the open cooktop burners with K+ Grill Plate or Char Broiler sections to optimise the space in your kitchen, or replace the open cooktop burners with a K+ Grill Plate.

All K+ units are constructed from stainless steel, ensuring easy cleaning without the fear of rusting. Additionally, every K+ unit comes with an 18-month warranty, giving you peace of mind that you are investing in a high-quality product.

SKU: KOV Categories: , , , , , , , , , ,

Features and Benefits

AISI Grade Stainless Steel

Heavy duty complete stainless steel frame

29MJ solid stainless steel tubular oven burner (OV)

30MJ two piece open cooktop burner (BT)

22MJ aluminised tube burner per 300mm section (GRP)

Heavy duty mild steel grill plate (12mm thick) (GRP)

Italian made top welded smooth finish design (GRP)

34MJ stainless steel U-Burner per 300mm section (CBR)

Heavy duty cast iron J-Grates & Radiant Hoods (CBR)

Reversible J-Grates allow for an inclined or flat cooking surface (CBR)

Heavy duty cast iron boiling top trivets

Solid mild steel base plate allows for even heat distribution

Heavy duty insulated drop down door with spring hinge system

German manufactured thermostat ensures accurate temperature control

Flame Failure & Pilot Ignition — Included as standard

Multi-setting gas valve — Allows greater regulation of flame setting

Easy access to all components for servicing and adjustments

Easy to clean fat spillage tray

Largest gastronorm capacity in its class

Internal Oven Dimensions: 630mm D x 485mm W x 290mm H (Height is measured from lowest rack position to the top panel)

18-month warranty

K+ Ovens

K+ Four Burner Oven

KOV-SB4

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 149Mj/h / 148Mj/h

Spec SheetCAD Drawing
KOV-SB2-CBR3

K+ Oven With Two Open Burners 300mm Char Broiler

KOV-SB2-CBR3

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 123Mj/h / 118Mj/h

Spec SheetCAD Drawing
KOV-SB2-GRP3

K+ Two Burner Oven With 300mm Grill Plate

KOV-SB2-GRP3

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 111Mj/h / 110Mj/h

Spec SheetCAD Drawing

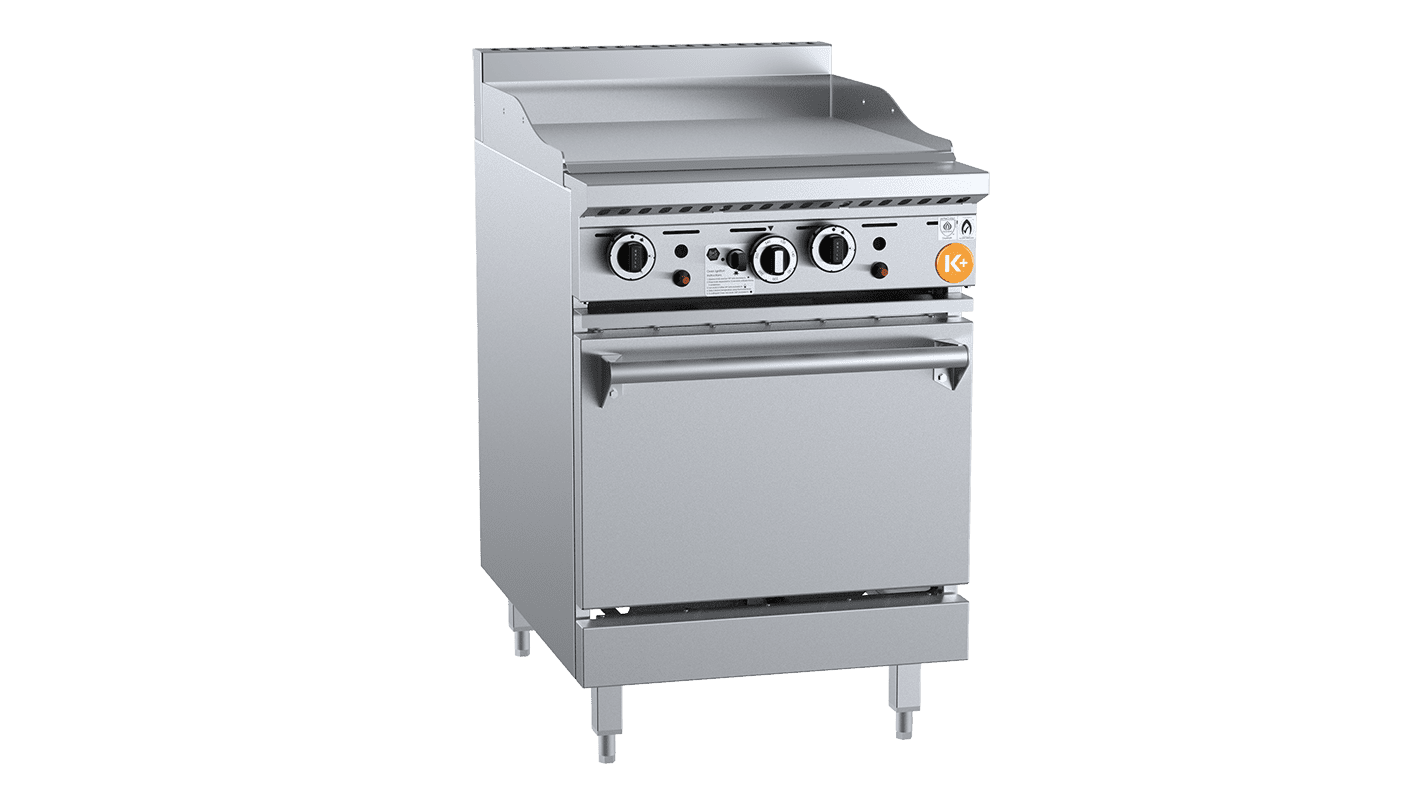

KOV-GRP6

K+ Oven With 600mm Grill Plate On Stand

KOV-GRP6

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 73Mj/h / 72Mj/h

Spec SheetCAD Drawing
KOV-SB6

K+ Six Burner Oven

KOV-SB6

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 209Mj/h / 208Mj/h

Spec SheetCAD Drawing
KOV-SB4-CBR3

K+ Oven With Four Open Burners 300mm Char Broiler

KOV-SB4-CBR3

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 183Mj/h / 178Mj/h

Spec SheetCAD Drawing
KOV-SB4-GRP3

K+ Four Burner Oven With 300mm Grill Plate

KOV-SB4-GRP3

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 171Mj/h / 170Mj/h

Spec SheetCAD Drawing
KOV-GRP9

K+ Oven With 900mm Grill Plate On Stand

KOV-GRP9

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 95Mj/h / 94Mj/h

Spec SheetCAD Drawing

Description

AISI Grade Stainless Steel

Heavy duty complete stainless steel frame

29MJ solid stainless steel tubular oven burner (OV)

30MJ two piece open cooktop burner (BT)

22MJ aluminised tube burner per 300mm section (GRP)

Heavy duty mild steel grill plate (12mm thick) (GRP)

Italian made top welded smooth finish design (GRP)

34MJ stainless steel U-Burner per 300mm section (CBR)

Heavy duty cast iron J-Grates & Radiant Hoods (CBR)

Reversible J-Grates allow for an inclined or flat cooking surface (CBR)

Heavy duty cast iron boiling top trivets

Solid mild steel base plate allows for even heat distribution

Heavy duty insulated drop down door with spring hinge system

German manufactured thermostat ensures accurate temperature control

Flame Failure & Pilot Ignition — Included as standard

Multi-setting gas valve — Allows greater regulation of flame setting

Easy access to all components for servicing and adjustments

Easy to clean fat spillage tray

Largest gastronorm capacity in its class

Internal Oven Dimensions: 630mm D x 485mm W x 290mm H (Height is measured from lowest rack position to the top panel)

18-month warranty

Additional information

DimensionsN/A
Model

, , , , , , ,
