The K+ Boiling top features a stainless steel frame and powerful 30Mj cooktop section burners.
The burners are perfect for busy and bustling kitchens as they are compact and durable. The heavy-duty cast-iron trivets are designed to withstand even the toughest kitchens.
The K+ Boiling Top is designed to maximise efficiency, even throughout the cleaning and servicing processes. See Combination Tops for other configurations available. K+ comes with an 18-month warranty.
Features and Benefits
AISI Grade Stainless Steel
Heavy duty complete stainless steel frame with undershelf
30MJ two piece open cooktop burner
Heavy duty cast iron boiling top trivets
Flame Failure & Pilot Ignition — Included as standard
Multi-setting gas valve — Allows greater regulation of flame setting
Easy access to all components for servicing and adjustments
Easy to clean fat spillage tray
18-month warranty

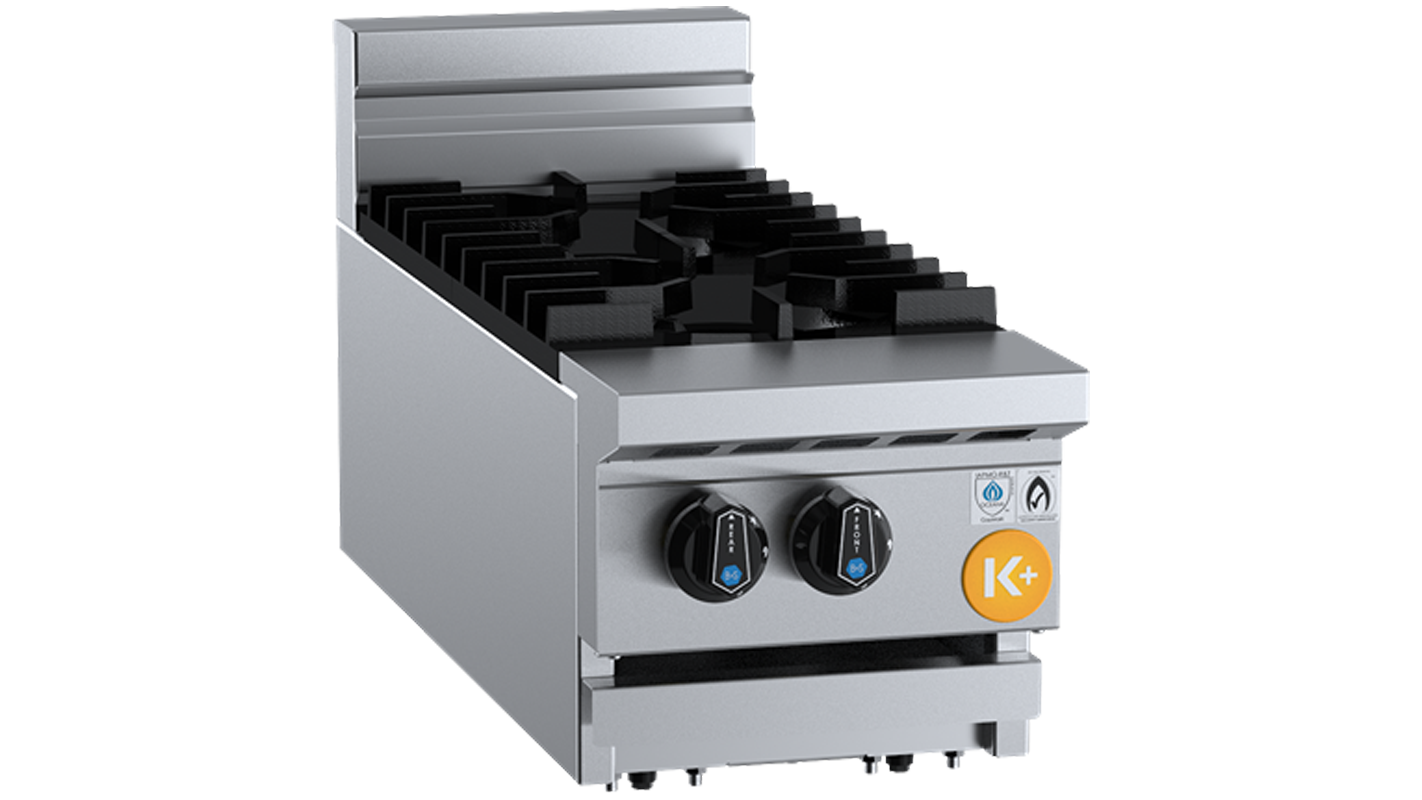

KBT-SB2 BM
Dimensions (L x W x H): 300mm x 840mm x 425mm
Gas Consumption (NG / LPG): 60Mj/h / 60Mj/h
Spec SheetCAD Drawing
KBT-SB2
Dimensions (L x W x H): 300mm x 840mm x 1030mm
Gas Consumption (NG / LPG): 60Mj/h / 60Mj/h
Spec SheetCAD Drawing

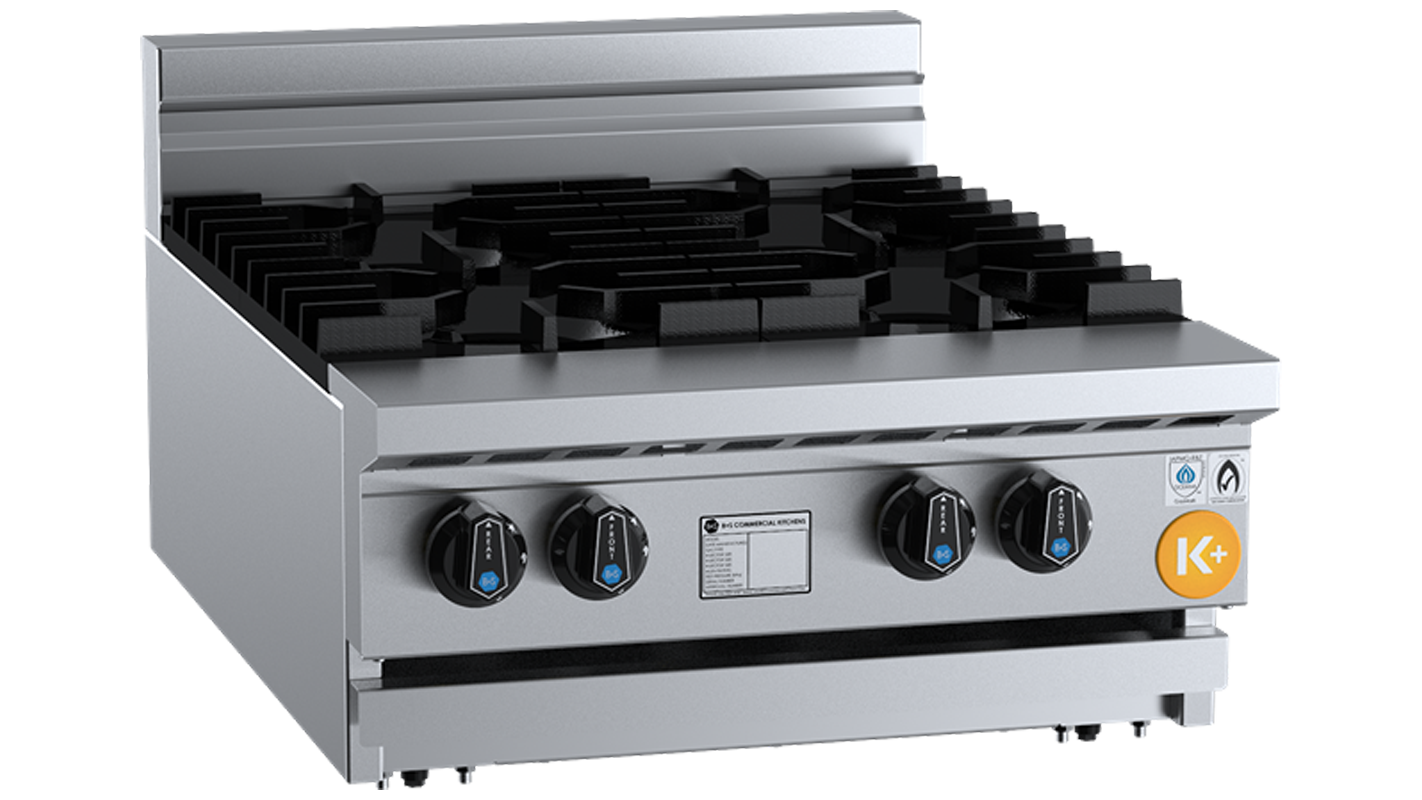

KBT-SB4 BM
Dimensions (L x W x H): 600mm x 840mm x 425mm
Gas Consumption (NG / LPG): 120Mj/h / 120Mj/h
Spec SheetCAD DrawingKBT-SB4
Dimensions (L x W x H): 600mm x 840mm x 1030mm
Gas Consumption (NG / LPG): 120Mj/h / 120Mj/h
Spec SheetCAD Drawing

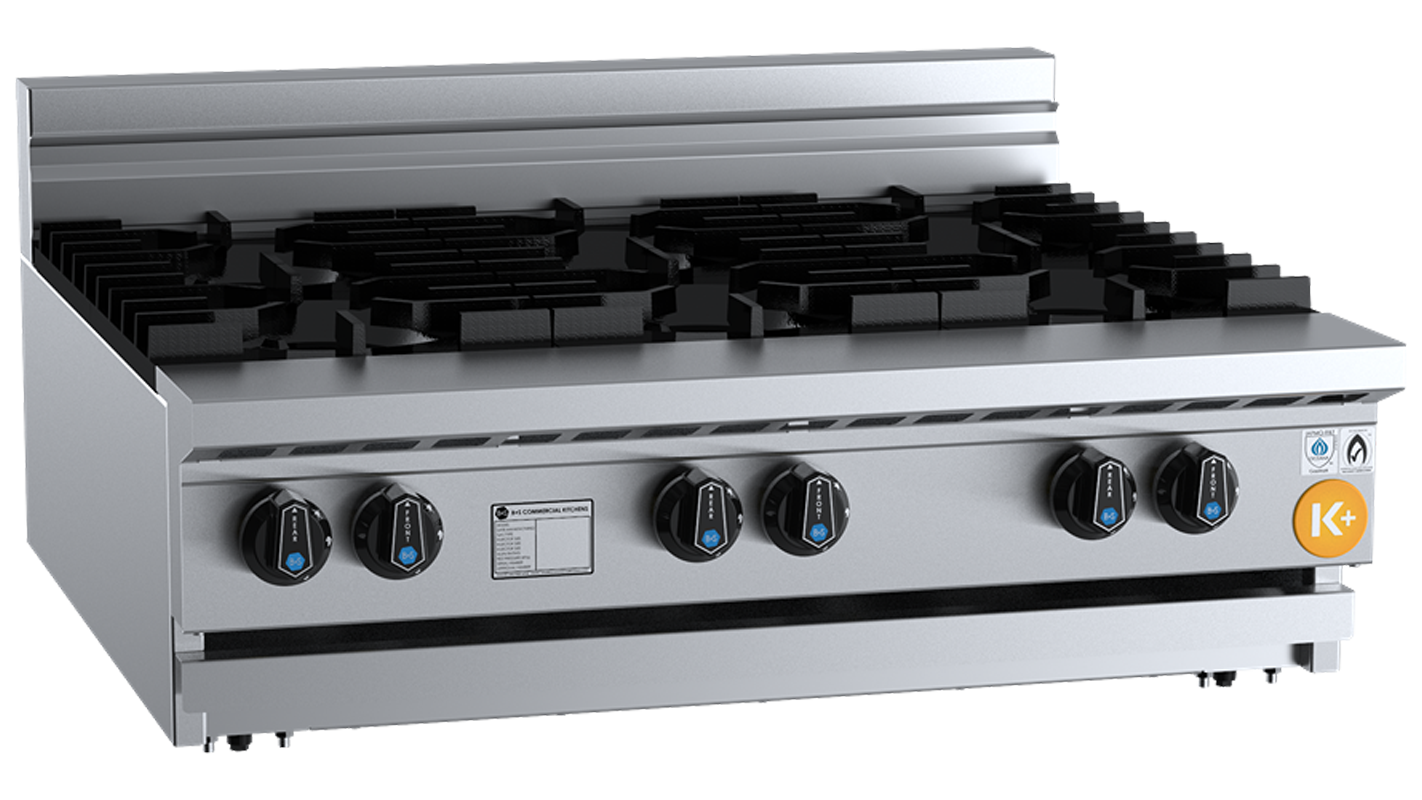

KBT-SB6 BM
Dimensions (L x W x H): 900mm x 840mm x 425mm
Gas Consumption (NG / LPG): 180Mj/h / 180Mj/h
Spec SheetCAD Drawing

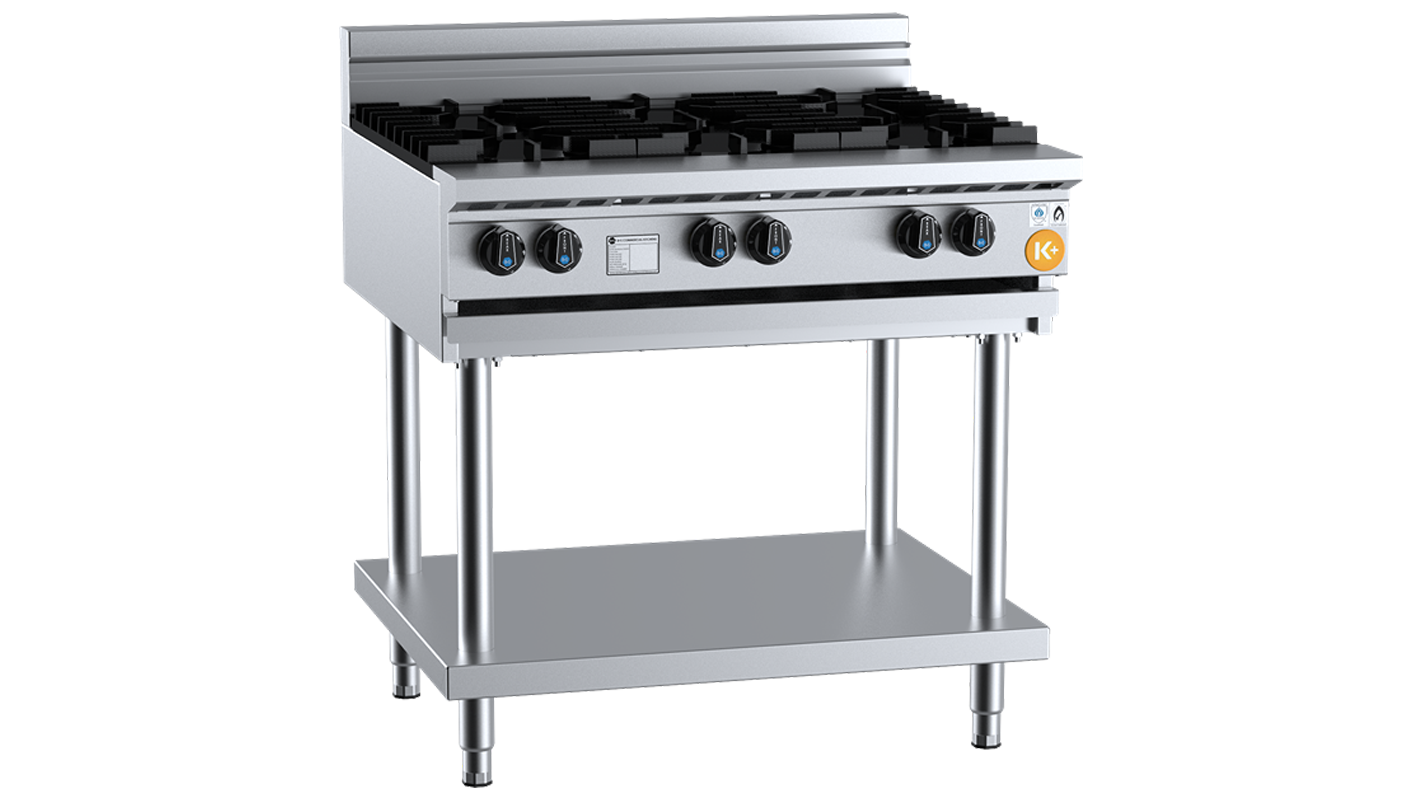

KBT-SB6
Dimensions (L x W x H): 900mm x 840mm x 1030mm
Gas Consumption (NG / LPG): 180Mj/h / 180Mj/h
Spec SheetCAD DrawingAISI Grade Stainless Steel
Heavy duty complete stainless steel frame with undershelf
30MJ two piece open cooktop burner
Heavy duty cast iron boiling top trivets
Flame Failure & Pilot Ignition — Included as standard
Multi-setting gas valve — Allows greater regulation of flame setting
Easy access to all components for servicing and adjustments
Easy to clean fat spillage tray
18-month warranty
Panels available in custom colours (Royal Blue as standard) and still available in classic Stainless Steel
AISI 304 grade stainless steel
Heavy-duty complete stainless steel cabinet frame
31MJ black enamelled Italian made top burner
29MJ oven burner
Removable pressed top spillage tray for easy cleaning
Removable heavy-duty 2 piece burners for easy cleaning
Solid mild steel base plate allows for even heat distribution
Biggest gastronorm capacity in class
German-made thermostat ensures accurate temperature control
Multi-setting gas valve as standard allowing for greater regulation of flame setting
Heavy-duty fully insulated drop-down door
Easy access to all components for servicing and adjustment
Flame failure fitted as standard
Heavy-duty mild steel plate (GRP section)
Heavy-duty cast iron cooking J grates (CBR section)
36-month warranty
AISI Grade Stainless Steel
Heavy duty complete stainless steel frame
29MJ solid stainless steel tubular oven burner (OV)
30MJ two piece open cooktop burner (BT)
22MJ aluminised tube burner per 300mm section (GRP)
Heavy duty mild steel grill plate (12mm thick) (GRP)
Italian made top welded smooth finish design (GRP)
34MJ stainless steel U-Burner per 300mm section (CBR)
Heavy duty cast iron J-Grates & Radiant Hoods (CBR)
Reversible J-Grates allow for an inclined or flat cooking surface (CBR)
Heavy duty cast iron boiling top trivets
Solid mild steel base plate allows for even heat distribution
Heavy duty insulated drop down door with spring hinge system
German manufactured thermostat ensures accurate temperature control
Flame Failure & Pilot Ignition — Included as standard
Multi-setting gas valve — Allows greater regulation of flame setting
Easy access to all components for servicing and adjustments
Easy to clean fat spillage tray
Largest gastronorm capacity in its class
Internal Oven Dimensions: 630mm D x 485mm W x 290mm H (Height is measured from lowest rack position to the top panel)
18-month warranty
AISI Grade Stainless Steel
Stainless steel constructed pan with center cool zone — 1.5mm thick
Efficient multi-jet target burner/s
+/– 3°C temperature recovery differential
Over-temperature safety cut-out switch
21.3L oil capacity (KTF-451), 13.5L oil capacity per section (KTF-451S)
Flame Failure — Included as standard
Piezo ignition to pilot multi-jet target burner
Complete with baskets, wire tray and night cover
Front access to all components makes service easy
Pan Dimensions: 415mm D x 300mm (KTF-451) 150mm (KTF-451S) W x 80mm H (Height is measured from the base plate to the oil level mark)
18-month warranty
Panels available in custom colours (Royal Blue as standard) and still available in classic Stainless Steel
AISI 304 grade stainless steel
Heavy-duty complete stainless steel cabinet frame
Baskets provided
2mm-thick AISI 316 marine grade tank
Self-closing basket insert mechanism to increase efficiency
Inbuilt water overflow helps remove water impurities
Australian made heavy-duty tapware
A multi-setting gas valve as standard allowing for greater regulation of flame setting
Piezo ignition and flame failure device are fitted as standard
Easy access to all components for servicing and adjustment
21-litre capacity
36-month warranty
