Additional information
| Model | Electric Smooth Griddle Plate 1200mm – 13.5KW, Electric Smooth Griddle Plate 400mm – 4.5KW, Electric Smooth Griddle Plate 800mm – 9KW |
|---|
Features and Benefits

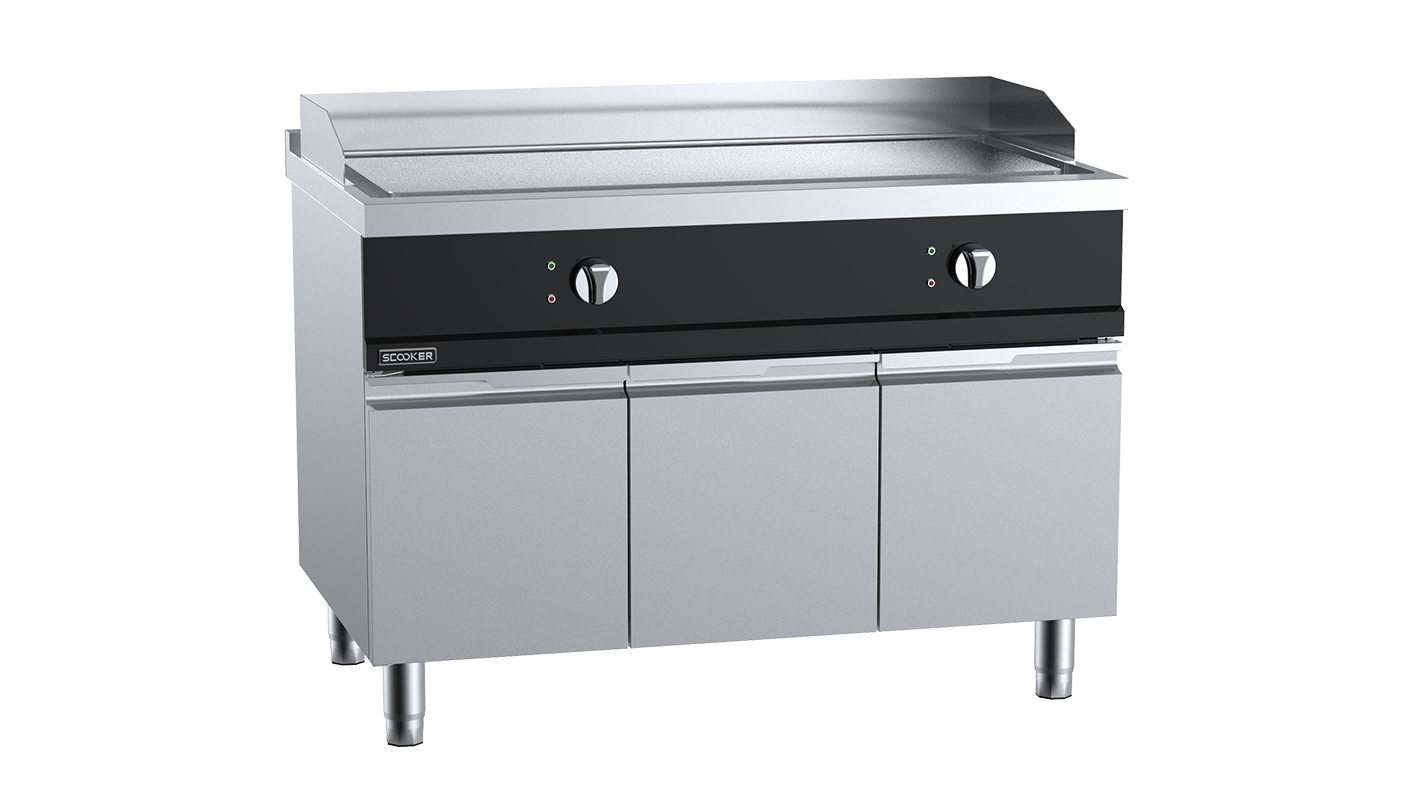

DLPP12N-C13D5
Dimensions (L x W x H): mm x mm x mm
Spec SheetCAD Drawing

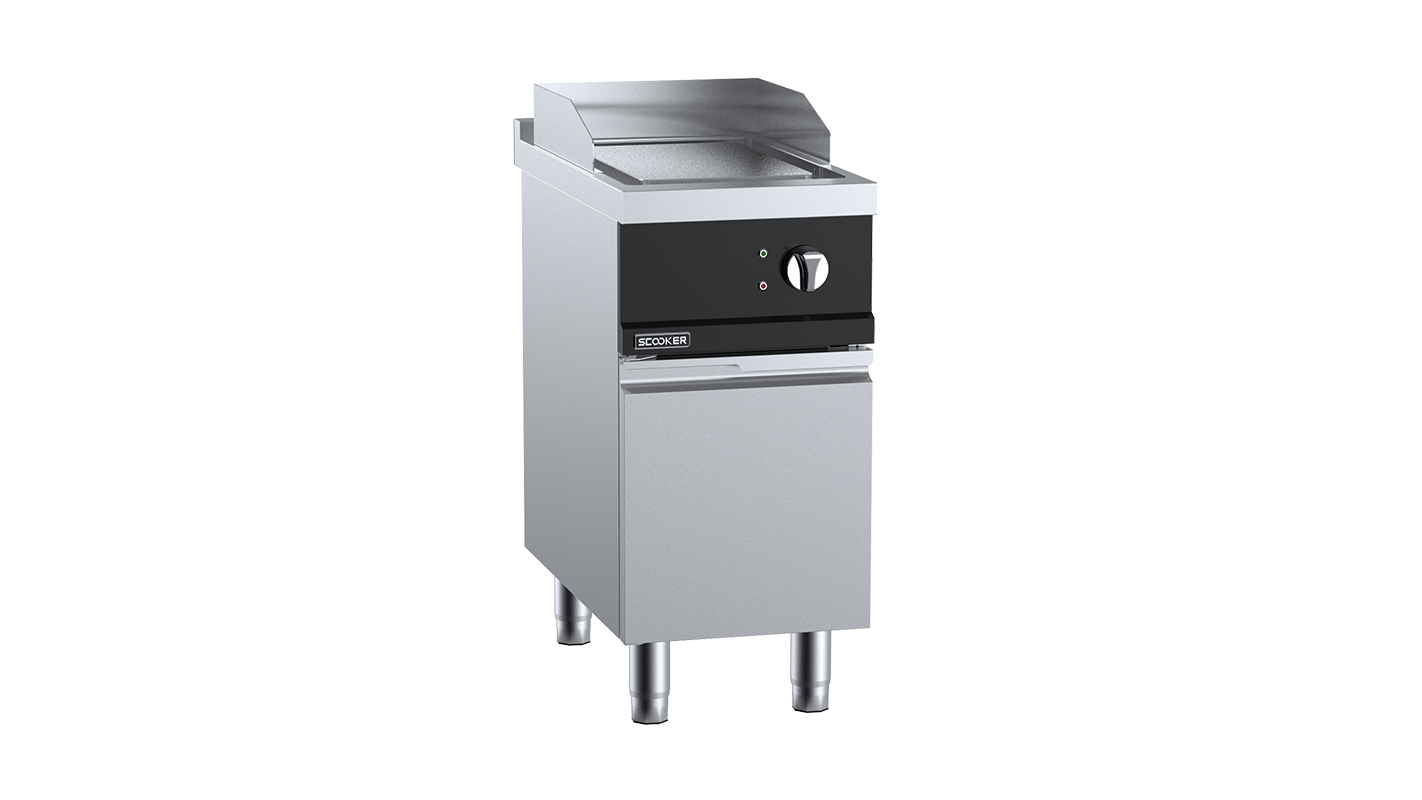

DLPP4N-C4D5
Dimensions (L x W x H): mm x mm x mm
Spec SheetCAD Drawing

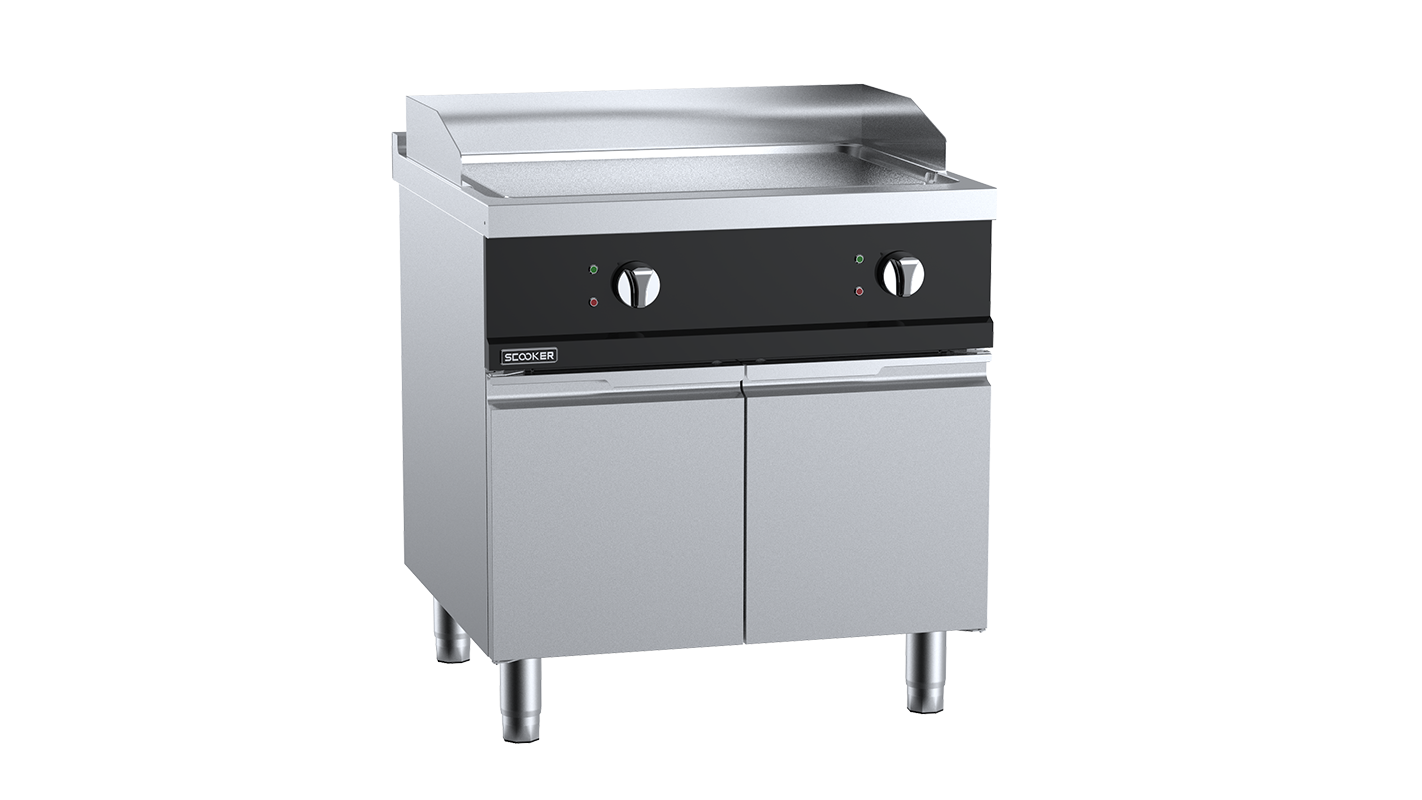

DLPP8N-C9
Dimensions (L x W x H): mm x mm x mm
Spec SheetCAD Drawing
AISI Grade Stainless Steel
AISI 316 Marine grade stainless steel tank — 1.5mm thick
Efficient multi-jet target burner
In-built water overflow helps remove water impurities
Water temperature is thermostatically controlled
30L water capacity
Flame Failure — Included as standard
Piezo ignition to pilot multi-jet target burner
Baskets provided
Front access to all components makes service easy
Pan Dimensions: 455mm D x 300mm W x 120mm H (Height is measured from the base plate to water level mark)
18-month warranty

AISI Grade Stainless Steel
Heavy duty complete stainless steel frame
Long skirt cast iron unflued ring – 340mm Diameter
Heavy duty removable cast iron trivet
Waterless feature eliminates the need for deck cooling
One-piece machine pressed top deck – 1.5mm Thick
Manually operated laundry arm and spindle
Heavy duty stainless steel lever action gas control
Flame Failure & Pilot – Included as standard
Front waste gutter allows for greater ease in cleaning
Waste shovel included
Front access to all components makes service easy
Natural or LPG Gas
24 Jet Mongolian Chimney Burner (CB) or 18 Jet Duckbill Burner (DB)
24-month warranty

AISI Grade Stainless Steel
Stainless steel constructed pan with center cool zone — 1.5mm Thick (RF-400) — 2.0mm (RF-1/2/3/4)
Efficient multi-jet target burner
+/- 3°C temperature recovery differential
Over-temperature safety cut-out switch
20L oil capacity (RF-400) / 40L oil capacity (RF-1)
Heavy duty lockable oil drain valve (RF-1)
Flame Failure – Included as standard
Piezo ignition to pilot multi-jet target burner
Stainless steel wire tray and night cover included
Inclined base provides greater ease in oil and waste removal
Front access to all components creates ease of service
Pan Dimensions: RF-400: 370mm L x 300mm W x 80mm H / RF-1: 510mm D x 510mm W x 80mm H (Height is measured from the wire tray to the oil level mark)

AISI Grade Stainless Steel
Heavy duty complete stainless steel frame with under shelf
22MJ aluminised tube burner per 300mm section
Italian made top welded smooth finish design – 300 plate size: 300 x 550 x 12mm – 600 plate size: 600 x 550 x 16mm – 900 plate size: 900 x 550 x 20mm
Flame Failure — Included as standard
Piezo ignition to pilot grill plate burner
Multi-setting gas valve — Allows greater regulation of flame setting
Easy access to all components for servicing and adjustment
Easy to clean fat spillage trays
18-month warranty
