BT GRP3 CBR3 MY2024

B+S Black Combination Boiling Tops

B+S Black Combination units deliver the best in quality, performance, and flexibility. When you need two pieces of equipment but only have room for one, this is a perfect choice. All units are constructed from AISI 304 grade stainless steel and ultimately provide flexibility and efficiency.

Combination Units can be integrated in multiple combinations using the Boiling Top, Grill Plate, and Char Broiler and come with a 24-month warranty.

Model

Clear

SKU: BT-1 Categories: American, B+S Black, Cafes, Chinese, Combination Tops, French, Hotels / Resorts, Indian, Indonesian, Institutions, Italian, Japanese, Korean, Quick Service Restaurants, Restaurants, Vietnamese

Features and Benefits

AISI Grade Stainless Steel

Heavy duty complete stainless steel frame with undershelf

31MJ black enameled Italian made burner (BT)

Heavy duty Italian made vitreous enameled trivets (BT)

Removable pressed top spillage tray for easy cleaning (BT)

Removable heavy duty two-piece burner for easy cleaning (BT)

22MJ aluminised tube burner per 300mm section (GRP)

Heavy duty mild steel grill plate — 12mm Thick (GRP)

Italian made top welded smooth finish design (GRP)

34MJ stainless steel U-Burner per 300mm section (CBR)

Heavy duty cast iron J-Grates & Radiant Hoods (CBR)

Reversible J-Grates allow for an inclined or flat cooking surface (CBR)

Flame Failure – Included as standard

Piezo ignition to pilot grill plate and char broiler burner

Multi-setting gas valve – Allows greater regulation of flame setting

Easy access to all components for servicing and adjustments

Easy to clean fat spillage trays

Natural or LPG Gas

24-month warranty

Optional extras

Pilot – per burner (BT)

Non-swivel rear castors – Set of two

Chrome Plating (GRP)

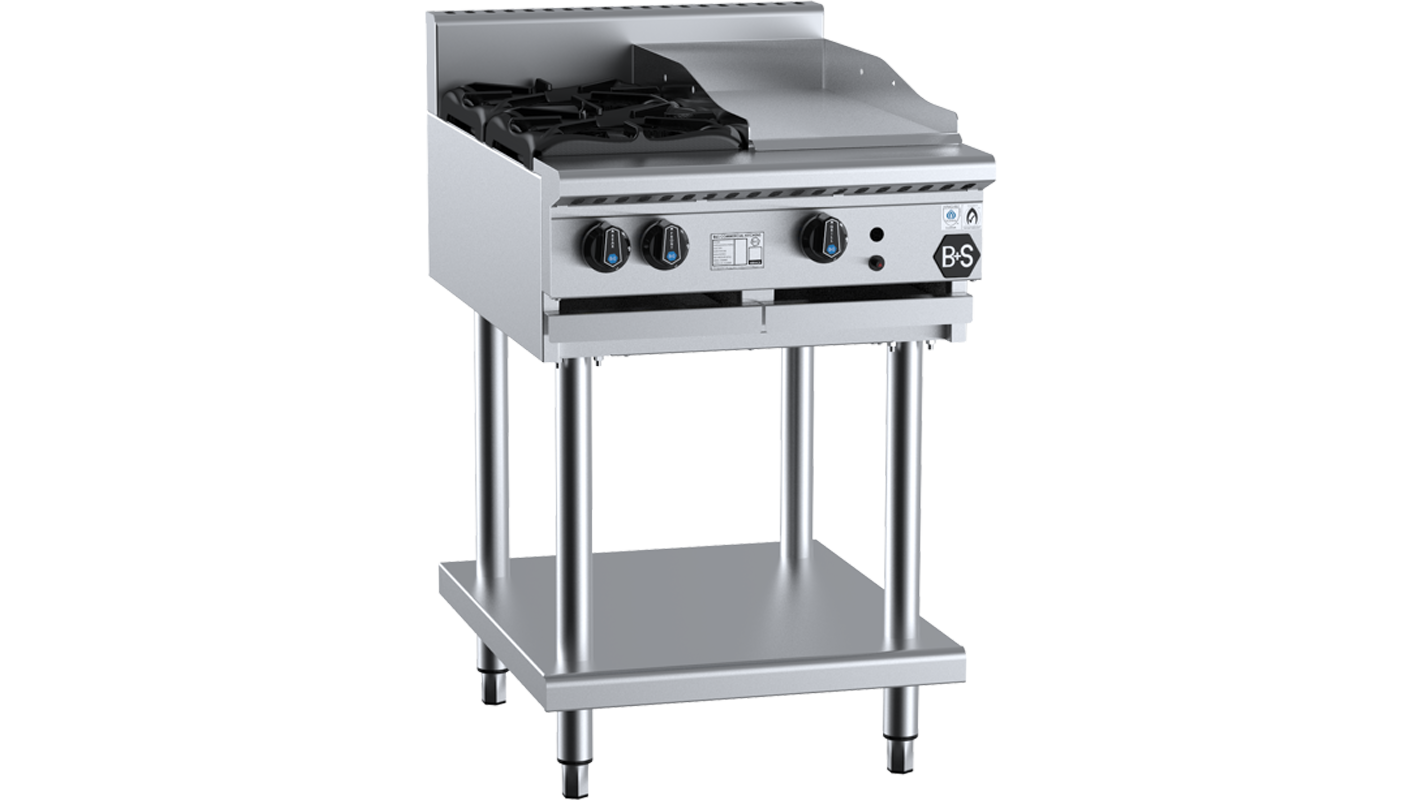

BT SB2 GRP3 MY2024

B+S Black Combination Two Open Burners 300mm Grill Plate

BT-SB2-GRP3

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 84Mj/h / 72Mj/h

Spec Sheet CAD Drawing

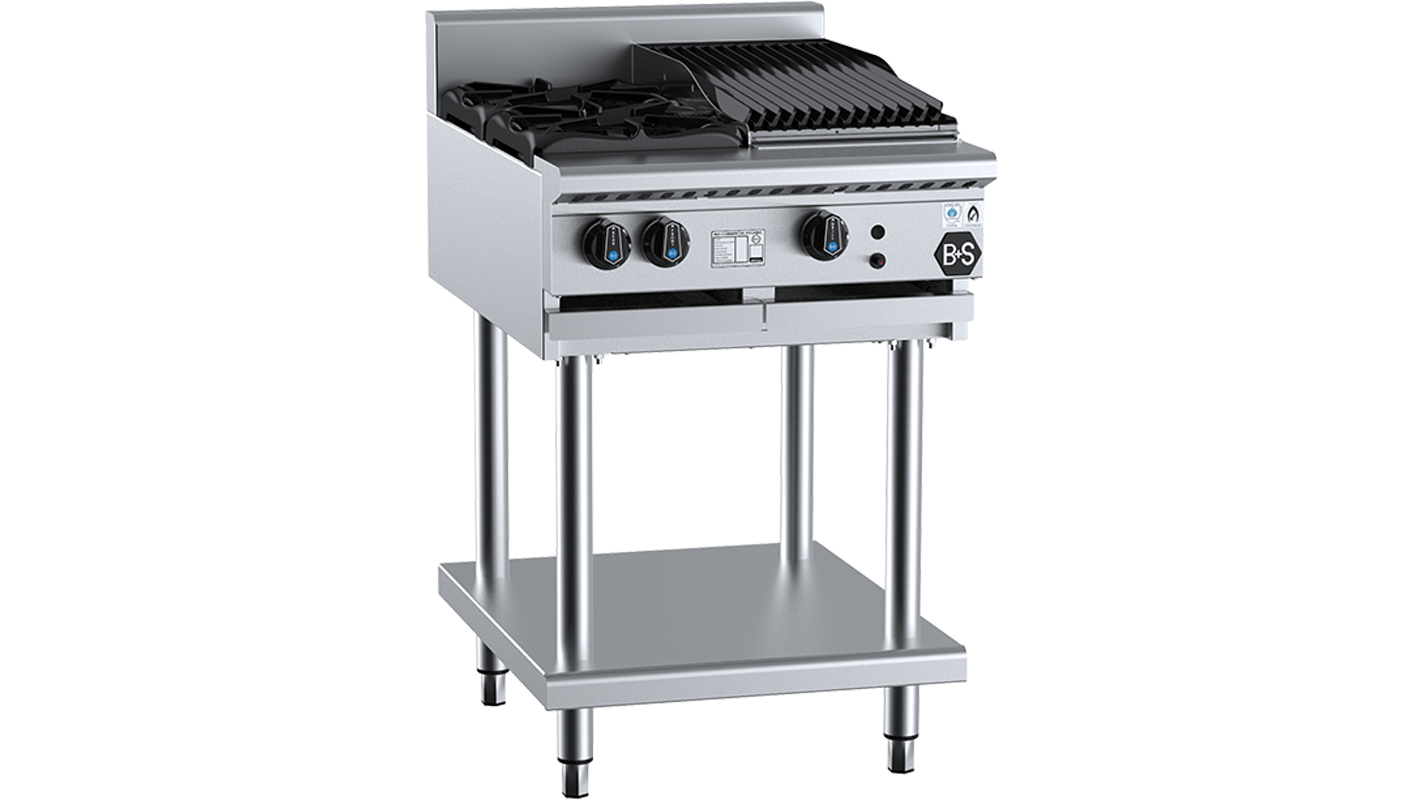

BT SB2 CBR3 MY2024

B+S Black Combination Two Open Burners 300mm Char Broiler

BT-SB2-CBR3

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 96Mj/h / 80Mj/h

Spec Sheet CAD Drawing

BT GRP3 CBR3 MY2024

B+S Black Combination 300mm Grill Plate 300mm Char Broiler

BT-GRP3-CBR3

Dimensions (L x W x H): 600mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 56Mj/h / 52Mj/h

Spec Sheet CAD Drawing

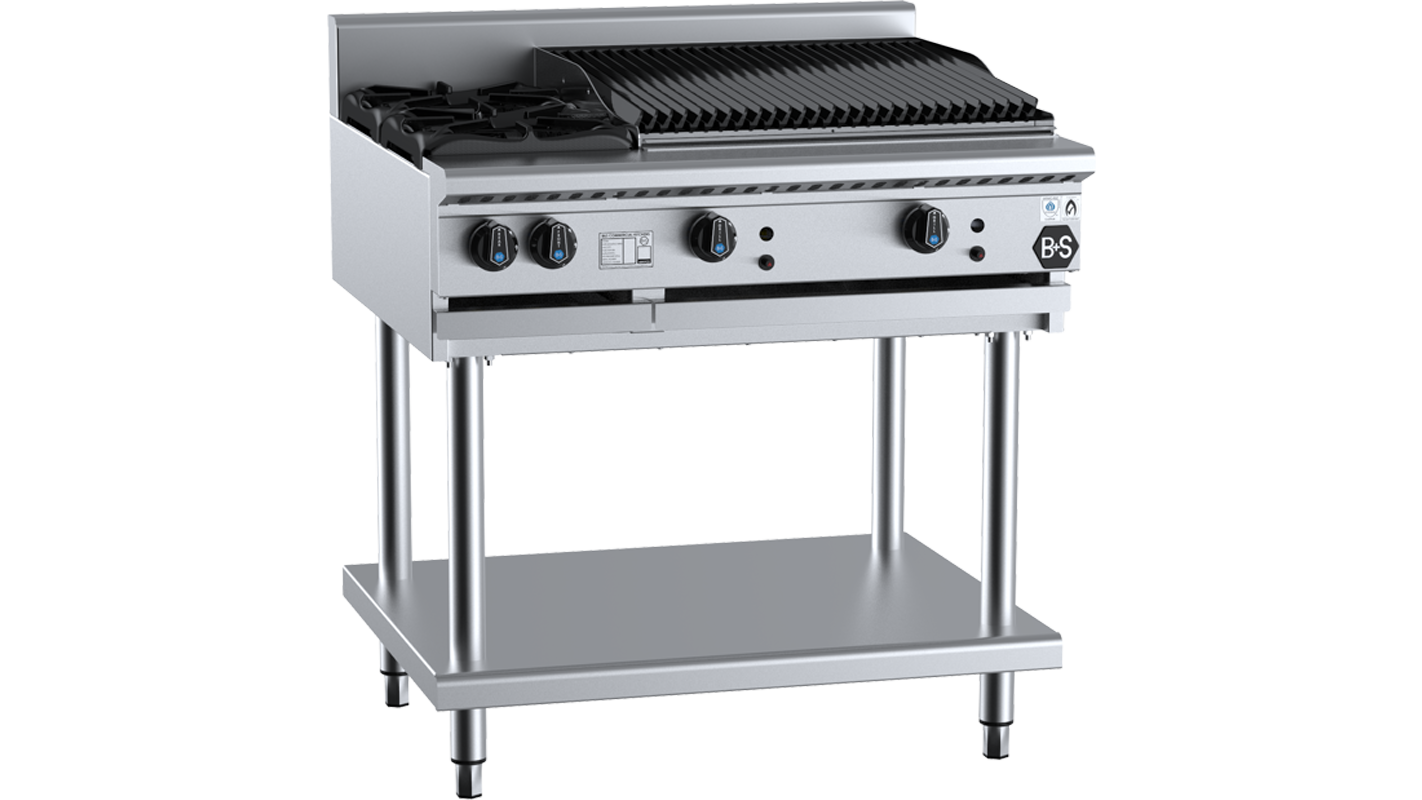

BT SB2 CBR6 MY2024

B+S Black Combination Two Open Burners 600mm Char Broiler

BT-SB2-CBR6

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 130Mj/h / 110Mj/h

Spec Sheet CAD Drawing

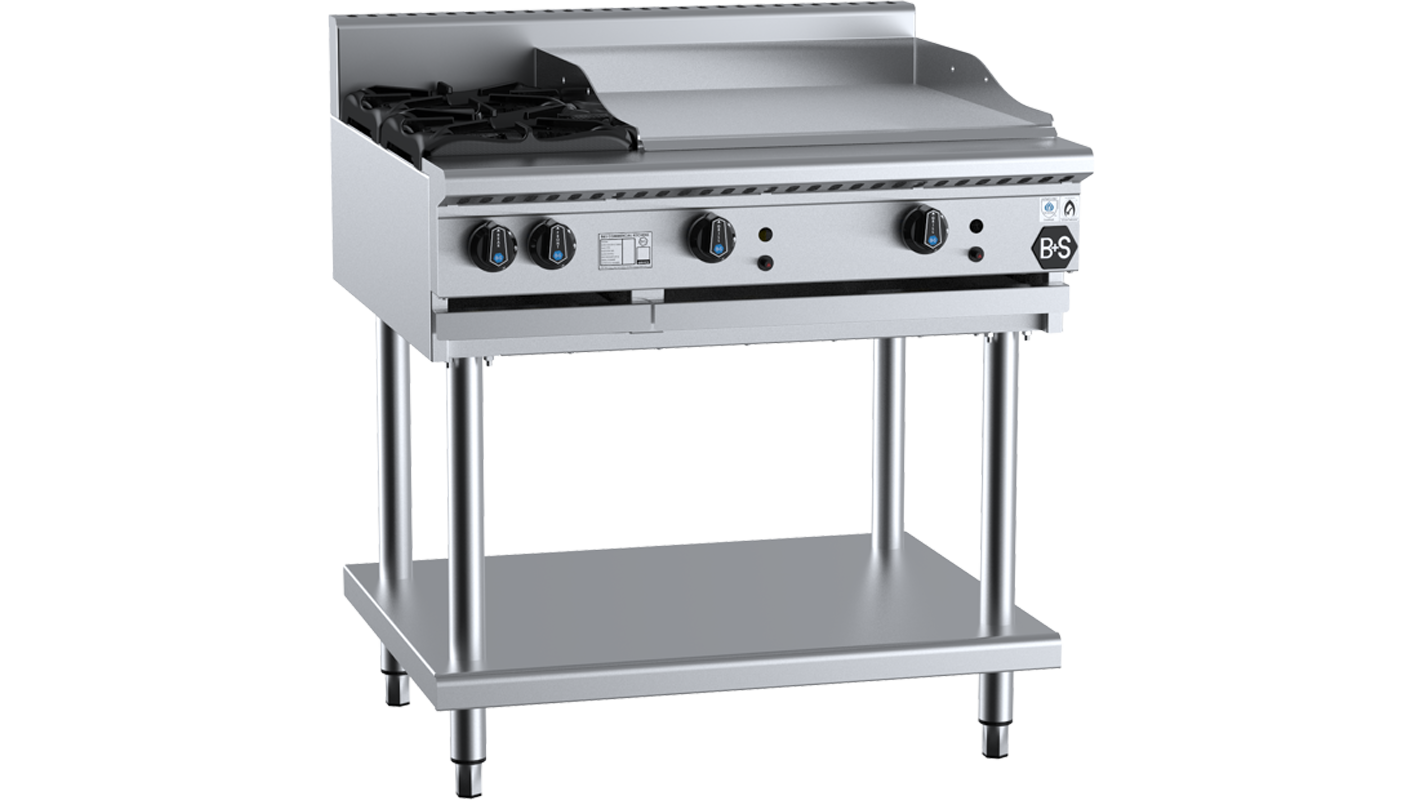

BT SB2 GRP6 MY2024

B+S Black Combination Two Open Burners 600mm Grill Plate

BT-SB2-GRP6

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 106Mj/h / 94Mj/h

Spec Sheet CAD Drawing

BT GRP6 CBR3 MY2024

B+S Black Combination 600mm Grill Plate 300mm Char Broiler

BT-GRP6-CBR3

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 78Mj/h / 74Mj/h

Spec Sheet CAD Drawing

BT GRP3 CBR6 MY2024

B+S Black Combination 300mm Grill Plate 600mm Char Broiler

BT-GRP3-CBR6

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 90Mj/h / 82Mj/h

Spec Sheet CAD Drawing

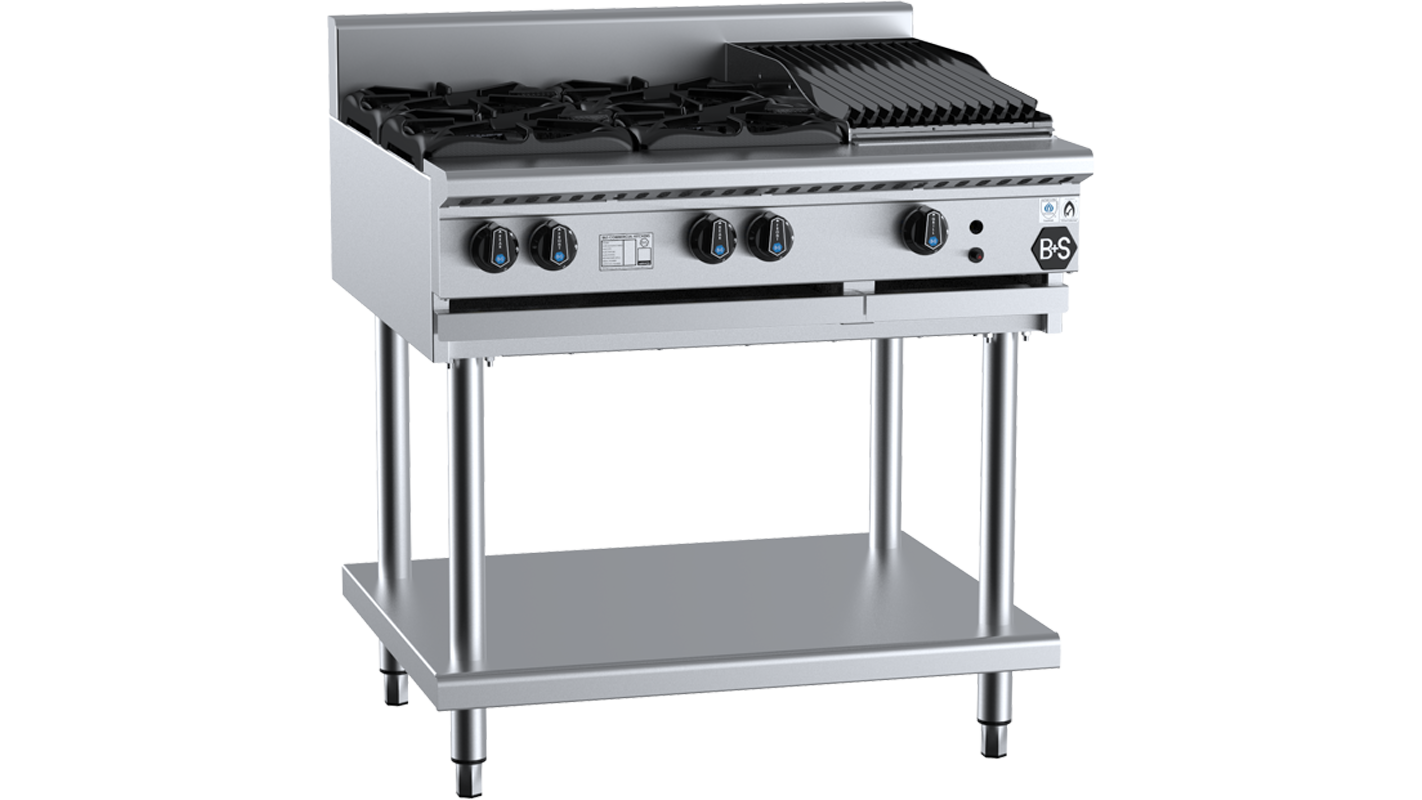

BT SB4 CBR3 MY2024

B+S Black Combination Four Open Burners 300mm Char Broiler

BT-SB4-CBR3

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 158Mj/h / 130Mj/h

Spec Sheet CAD Drawing

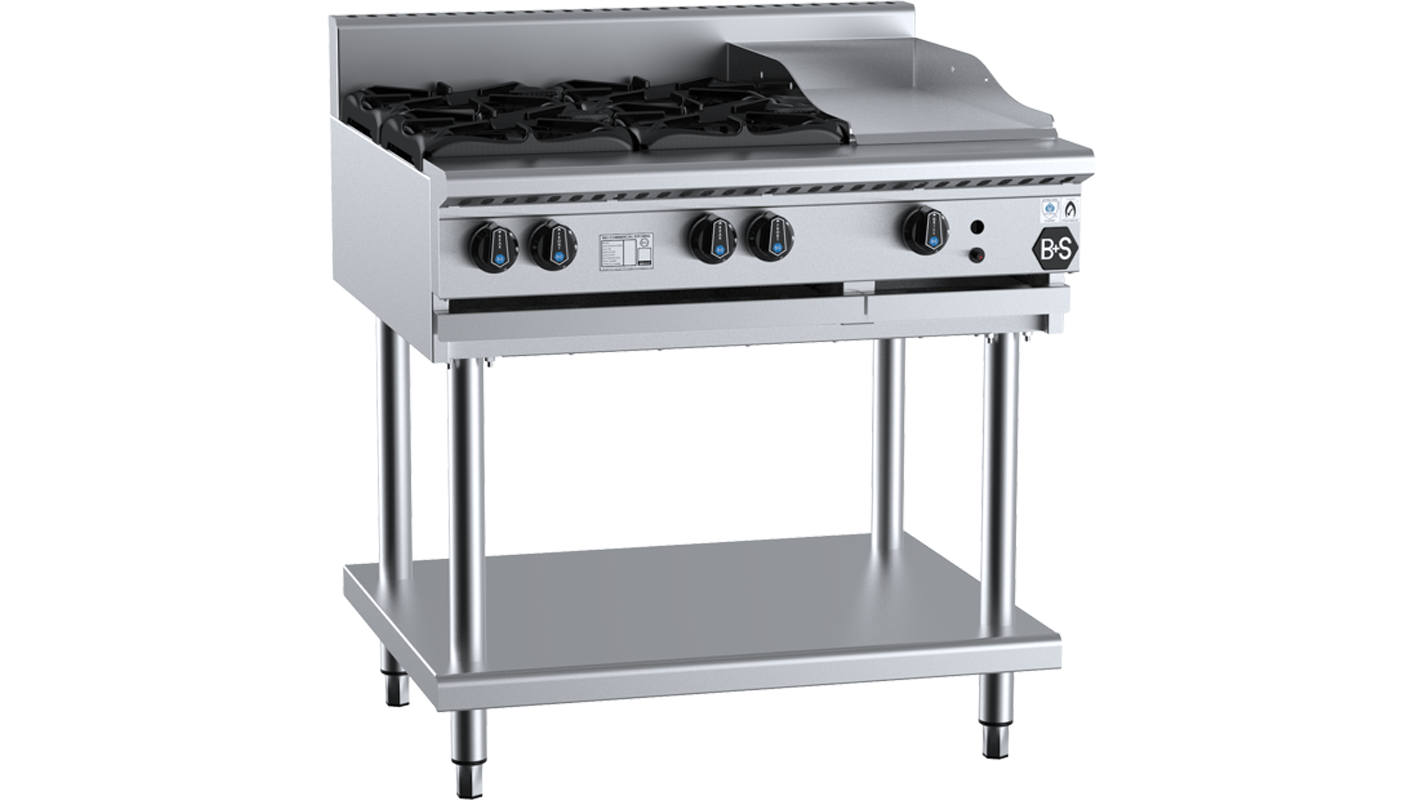

BT SB4 GRP3 MY2024

B+S Black Combination Four Open Burners 300mm Grill Plate

BT-SB4-GRP3

Dimensions (L x W x H): 900mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 146Mj/h / 122Mj/h

Spec Sheet CAD Drawing

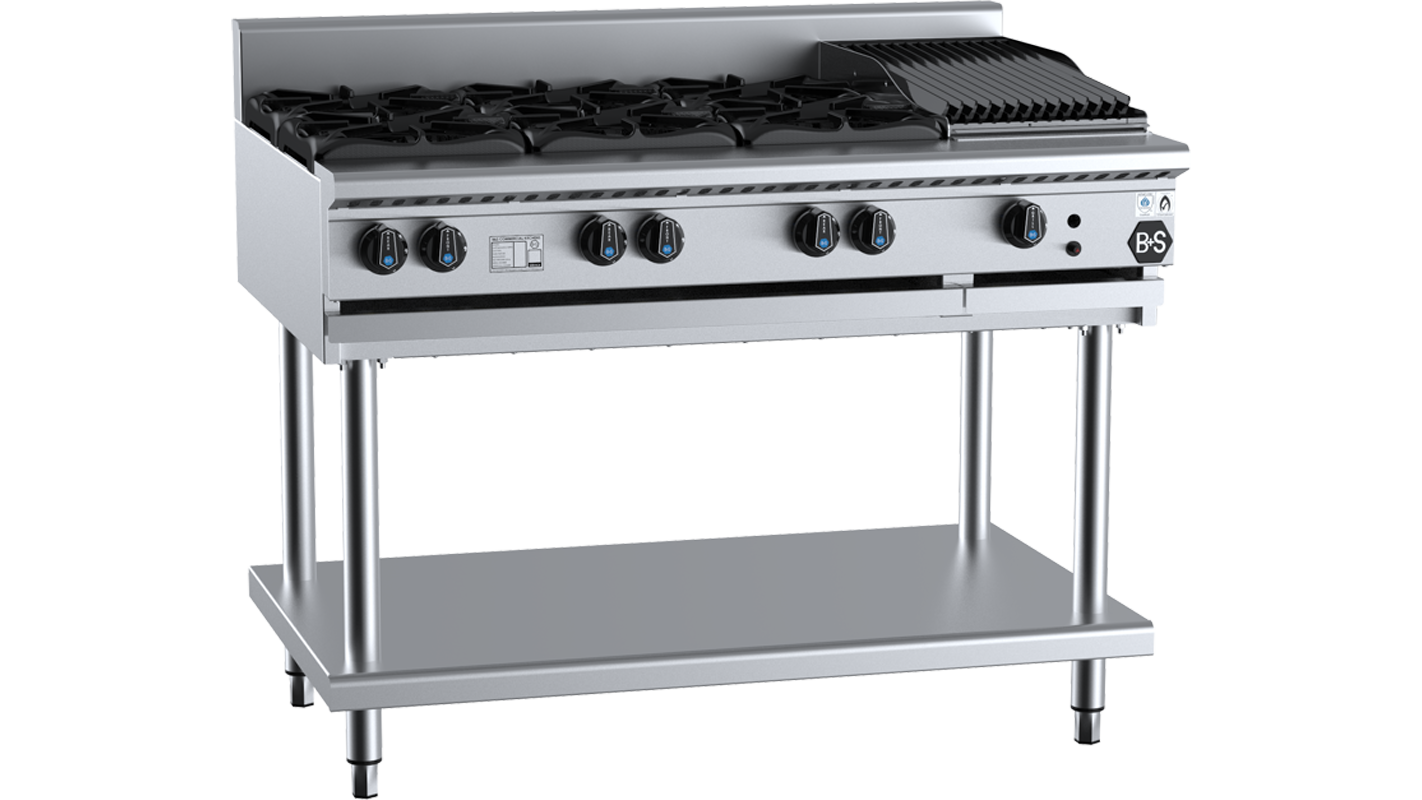

BT SB6 CBR3 MY2024

B+S Black Combination Six Open Burners 300mm Char Broiler

BT-SB6-CBR3

Dimensions (L x W x H): 1200mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 220Mj/h / 180Mj/h

Spec Sheet CAD Drawing

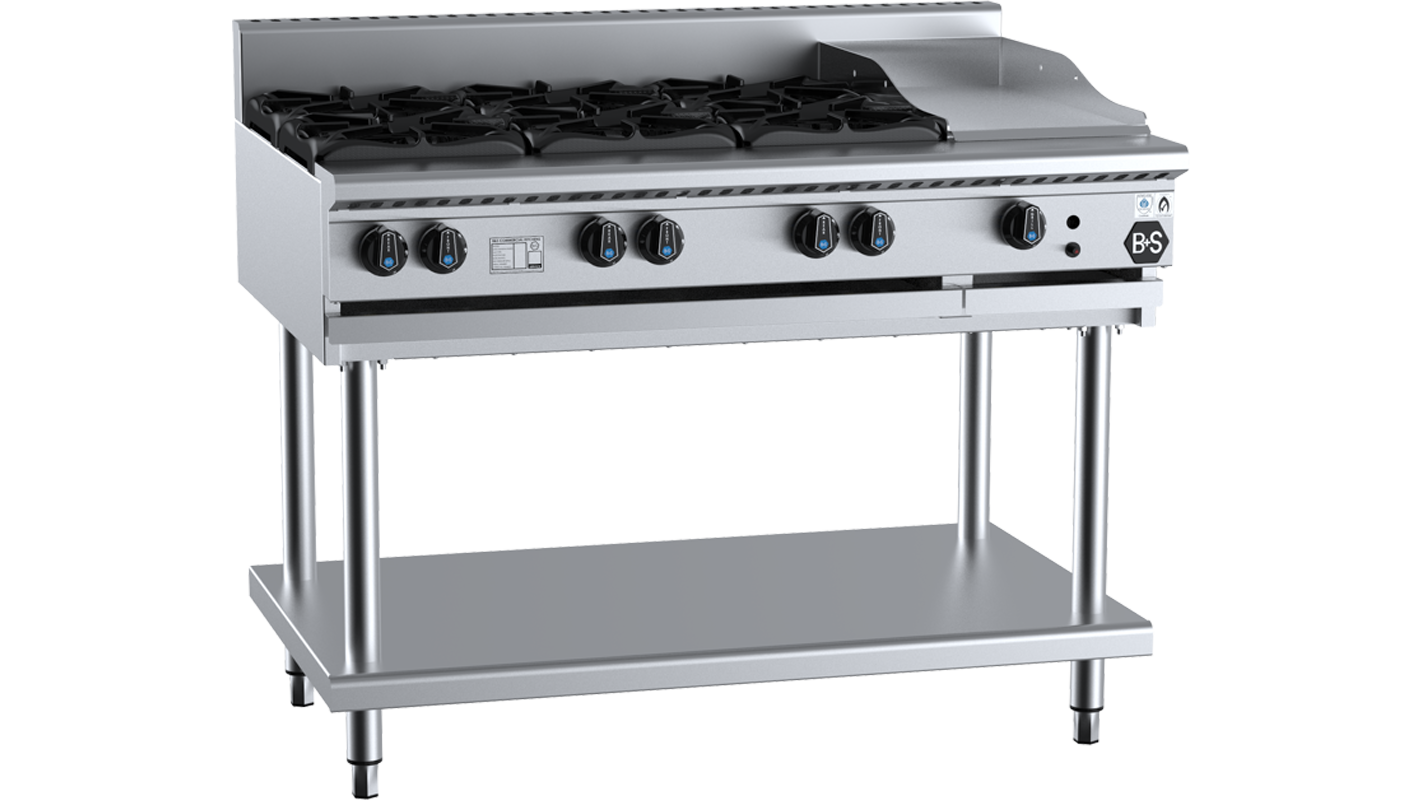

BT SB6 GRP3 MY2024

B+S Black Combination Six Open Burners 300mm Grill Plate

BT-SB6-GRP3

Dimensions (L x W x H): 1200mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 208Mj/h / 172Mj/h

Spec Sheet CAD Drawing

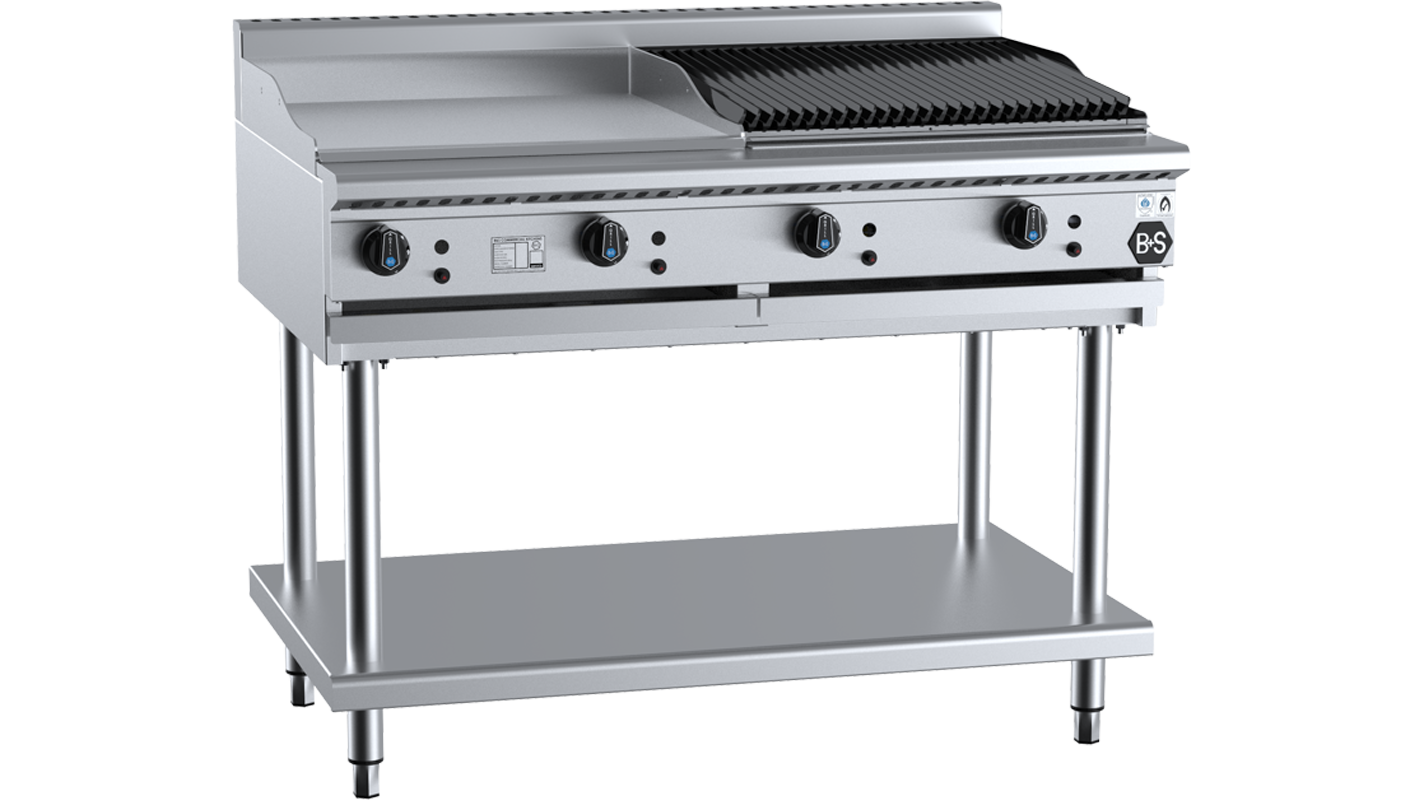

BT GRP6 CBR6 MY2024

B+S Black Combination 600mm Grill Plate 600mm Char Broiler

BT-GRP6-CBR6

Dimensions (L x W x H): 1200mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 112Mj/h / 104Mj/h

Spec Sheet CAD Drawing

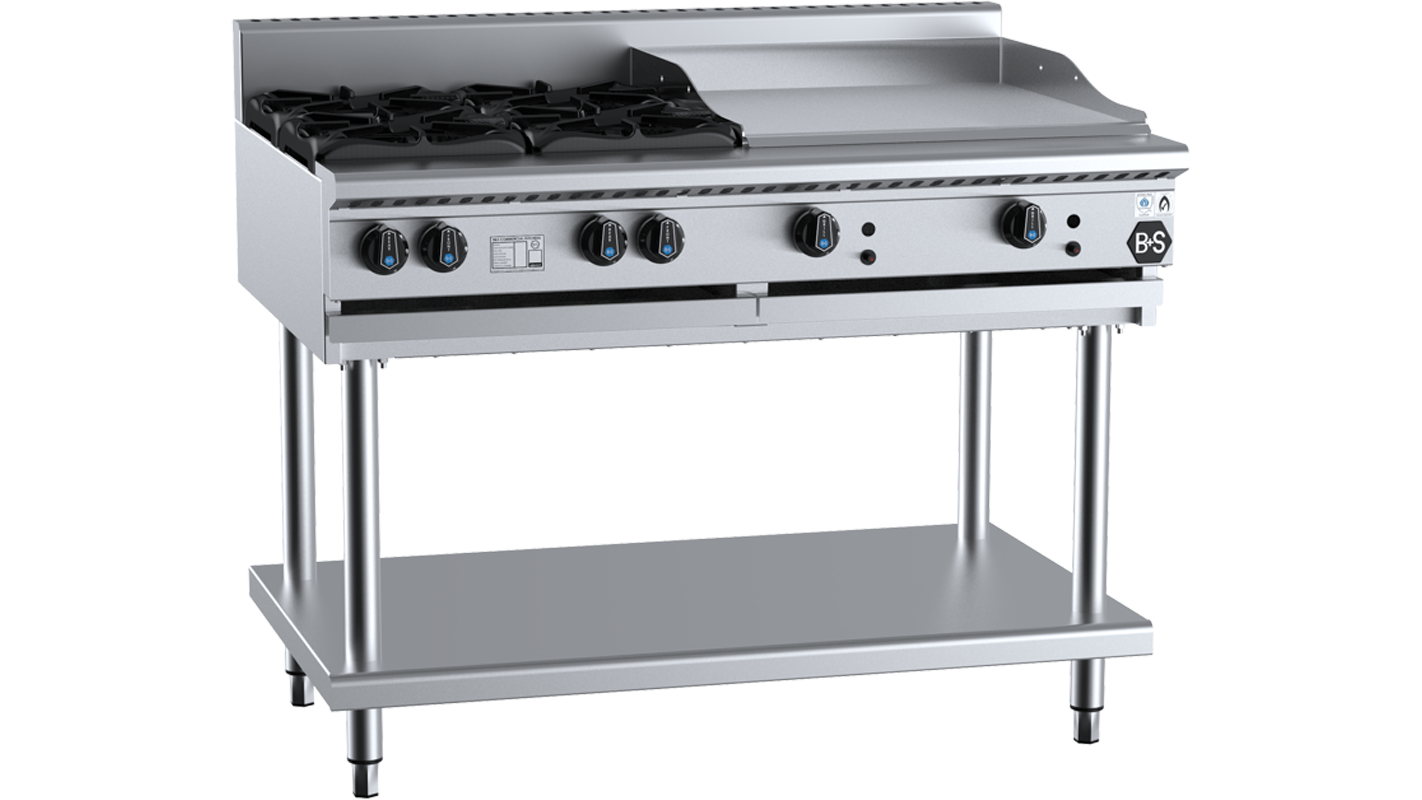

BT SB4 GRP6 MY2024

B+S Black Combination Four Open Burners 600mm Grill Plate

BT-SB4-GRP6

Dimensions (L x W x H): 1200mm x 840mm x 1030mm

Gas Consumption (NG / LPG): 168Mj/h / 144Mj/h

Spec Sheet CAD Drawing

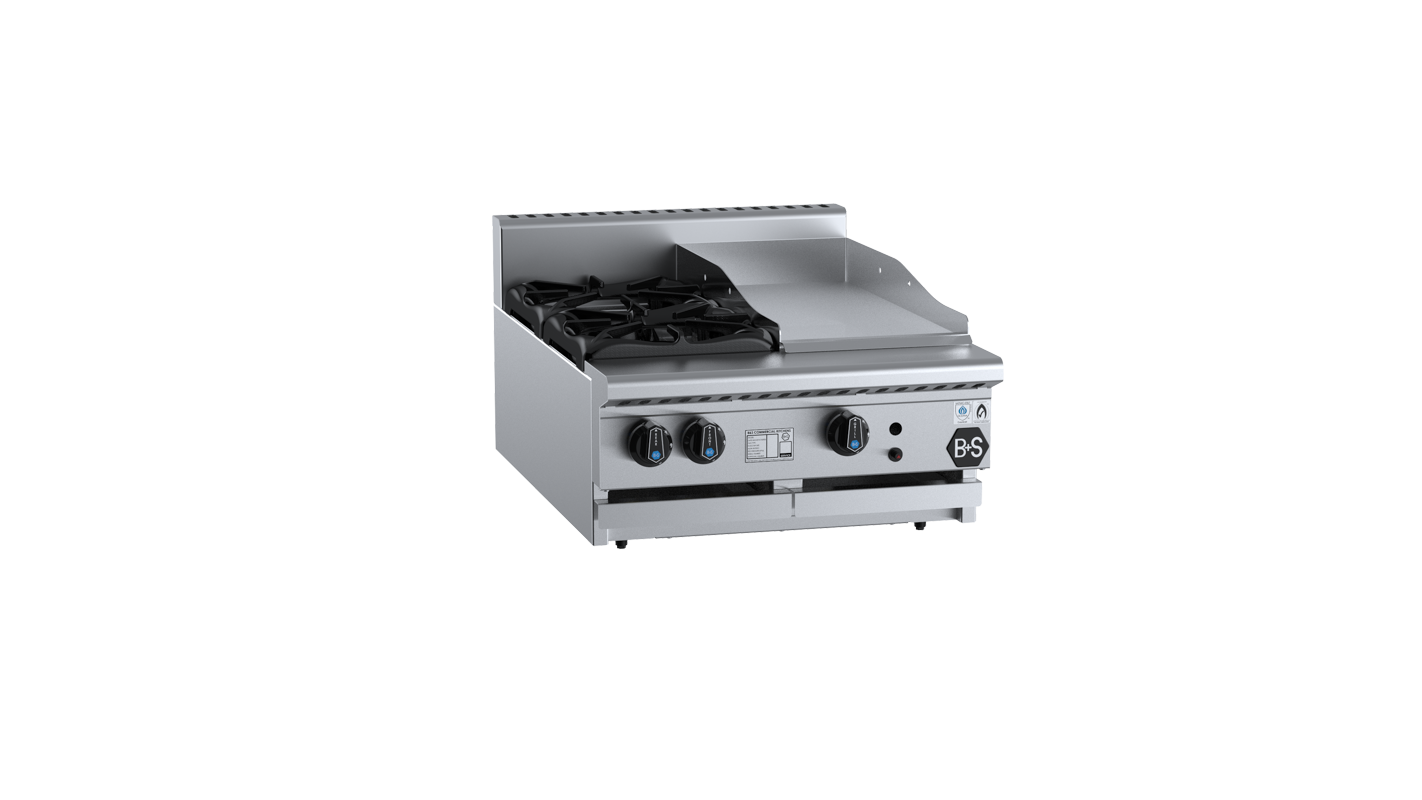

BT SB2 GRP3 BM MY2024

B+S Black Combination Two Open Burners 300mm Grill Plate Bench Mounted

BT-SB2-GRP3BM

Dimensions (L x W x H): 600mm x 840mm x 425mm

Gas Consumption (NG / LPG): 84Mj/h / 72Mj/h

Spec Sheet CAD Drawing

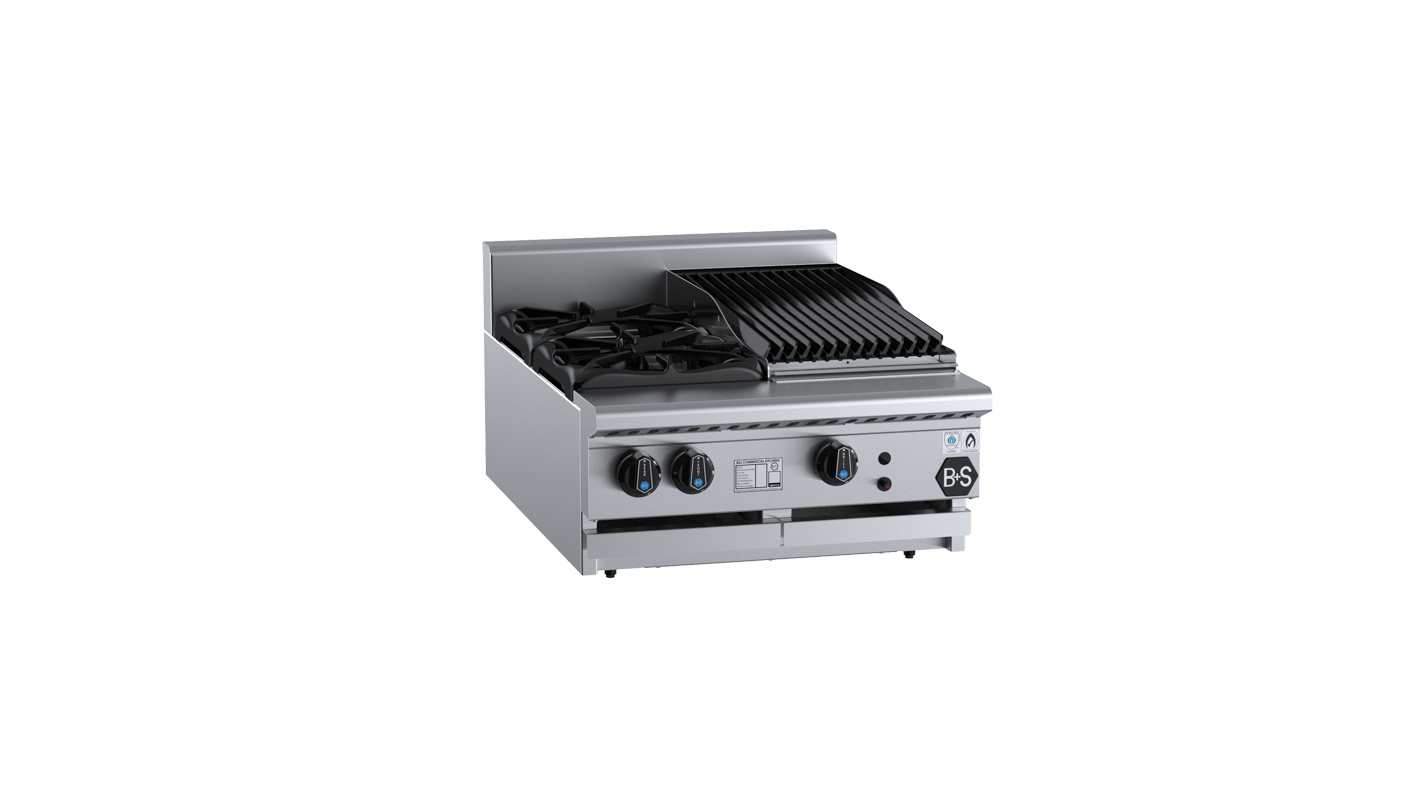

BT SB2 CBR3 BM MY2024

B+S Black Combination Two Open Burners 300mm Char Broiler Bench Mounted

BT-SB2-CBR3BM

Dimensions (L x W x H): 600mm x 840mm x 425mm

Gas Consumption (NG / LPG): 96Mj/h / 80Mj/h

Spec Sheet CAD Drawing

BT GRP3 CBR3 BM MY2024

B+S Black Combination 300mm Grill Plate 300mm Char Broiler Bench Mounted

BT-GRP3-CBR3BM

Dimensions (L x W x H): 600mm x 840mm x 425mm

Gas Consumption (NG / LPG): 56Mj/h / 52Mj/h

Spec Sheet CAD Drawing

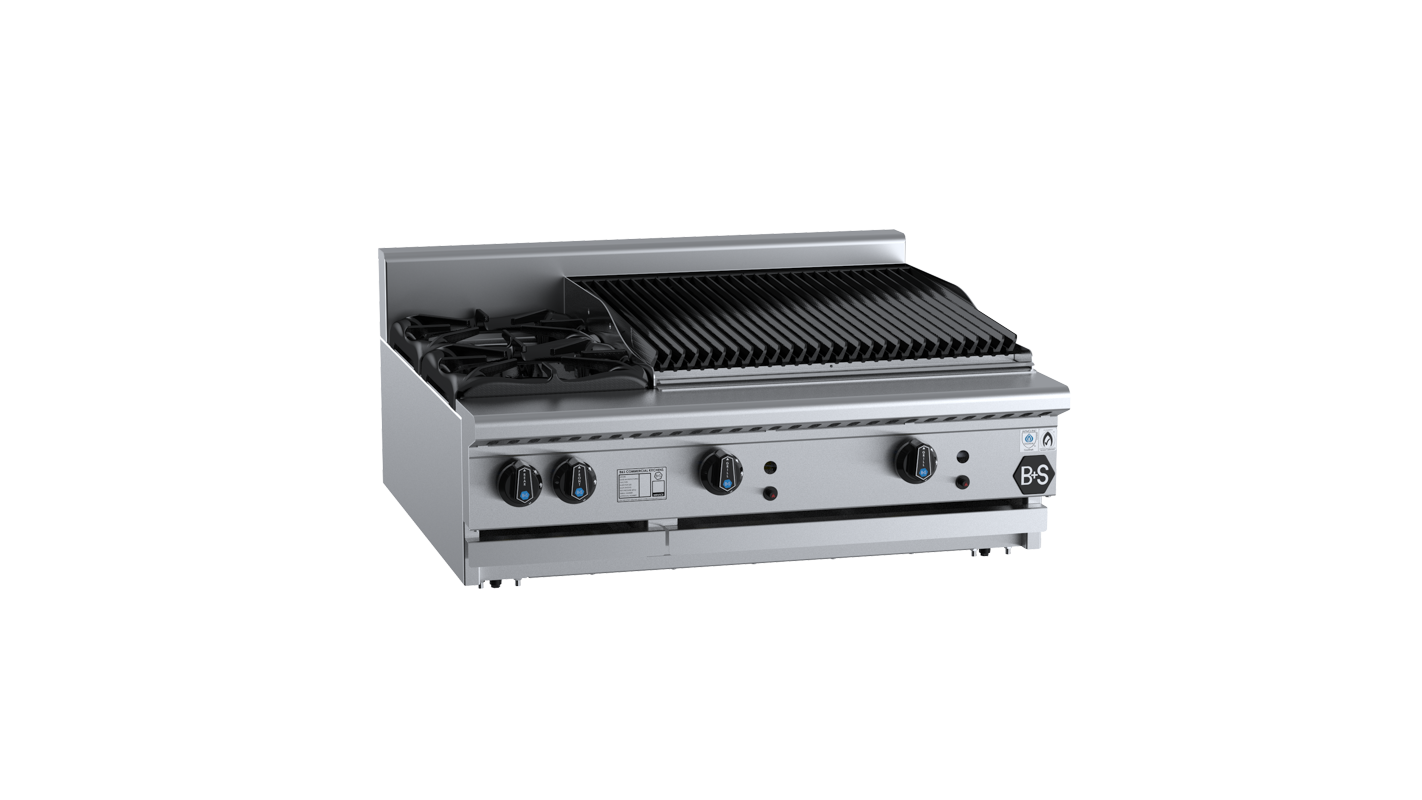

BT SB2 CBR6 BM MY2024

B+S Black Combination Two Open Burners 600mm Char Broiler Bench Mounted

BT-SB2-CBR6BM

Dimensions (L x W x H): 900mm x 840mm x 425mm

Gas Consumption (NG / LPG): 130Mj/h / 110Mj/h

Spec Sheet CAD Drawing

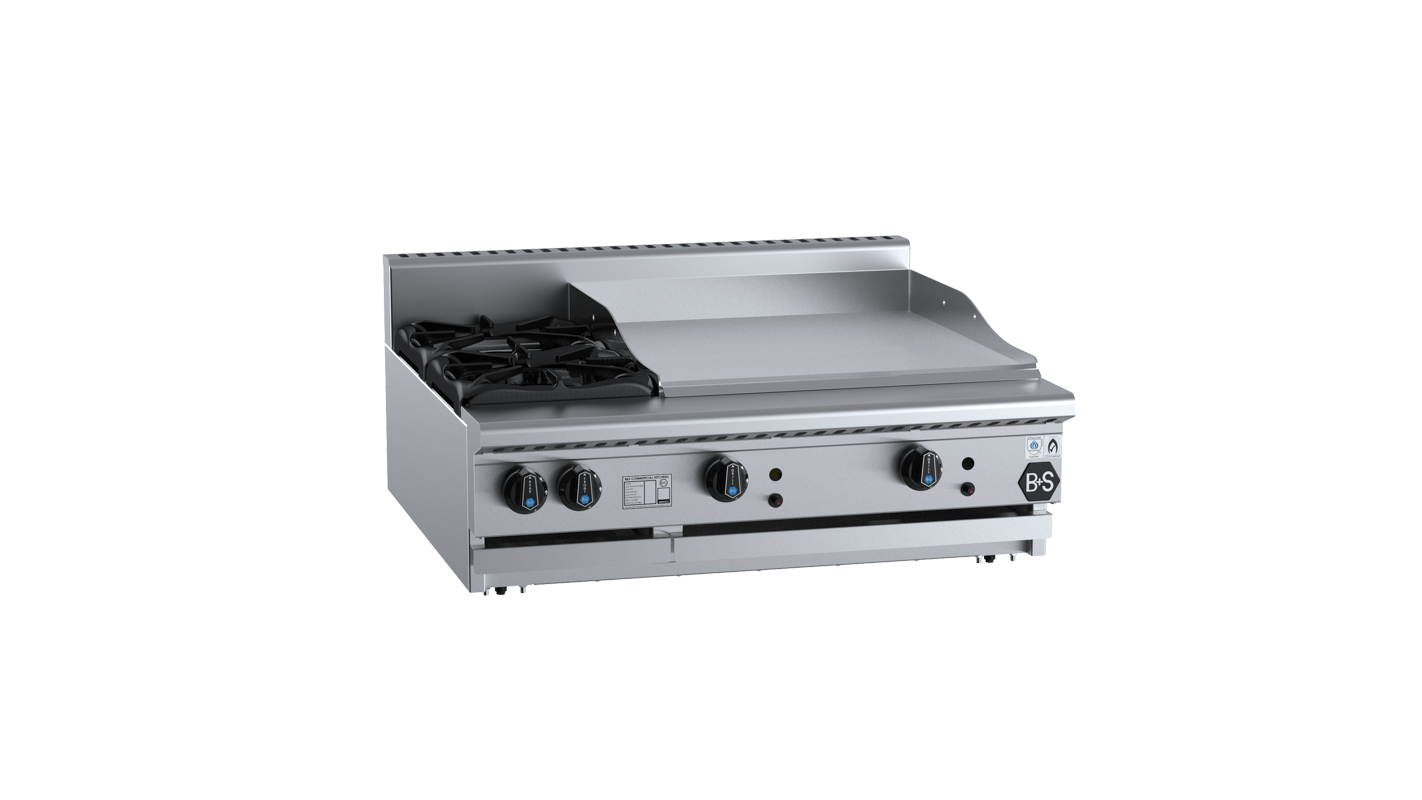

BT SB2 GRP6 BM MY2024

B+S Black Combination Two Open Burners 600mm Grill Plate Bench Mounted

BT-SB2-GRP6BM

Dimensions (L x W x H): 900mm x 840mm x 425mm

Gas Consumption (NG / LPG): 106Mj/h / 94Mj/h

Spec Sheet CAD Drawing

BT GRP6 CBR3 BM MY2024

B+S Black Combination 600mm Grill Plate 300mm Char Broiler Bench Mounted

BT-GRP6-CBR3BM

Dimensions (L x W x H): 900mm x 840mm x 425mm

Gas Consumption (NG / LPG): 78Mj/h / 74Mj/h

Spec Sheet CAD Drawing

BT GRP3 CBR6 BM MY2024

B+S Black Combination 300mm Grill Plate 600mm Char Broiler Bench Mounted

BT-GRP3-CBR6BM

Dimensions (L x W x H): 900mm x 840mm x 425mm

Gas Consumption (NG / LPG): 90Mj/h / 82Mj/h

Spec Sheet CAD Drawing

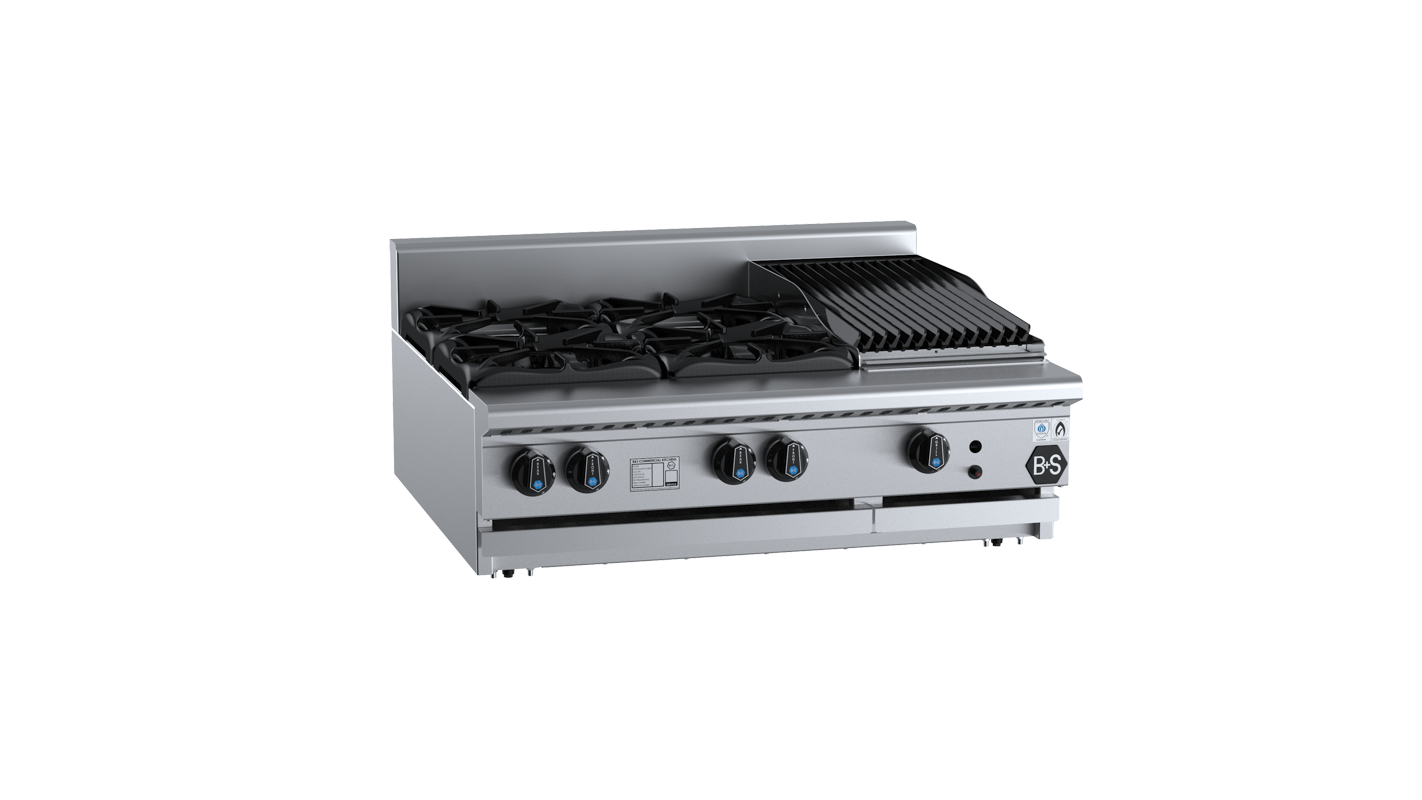

BT SB4 CBR3 BM MY2024

B+S Black Combination Four Open Burners 300mm Char Broiler Bench Mounted

BT-SB4-CBR3BM

Dimensions (L x W x H): 900mm x 840mm x 425mm

Gas Consumption (NG / LPG): 158Mj/h / 130Mj/h

Spec Sheet CAD Drawing

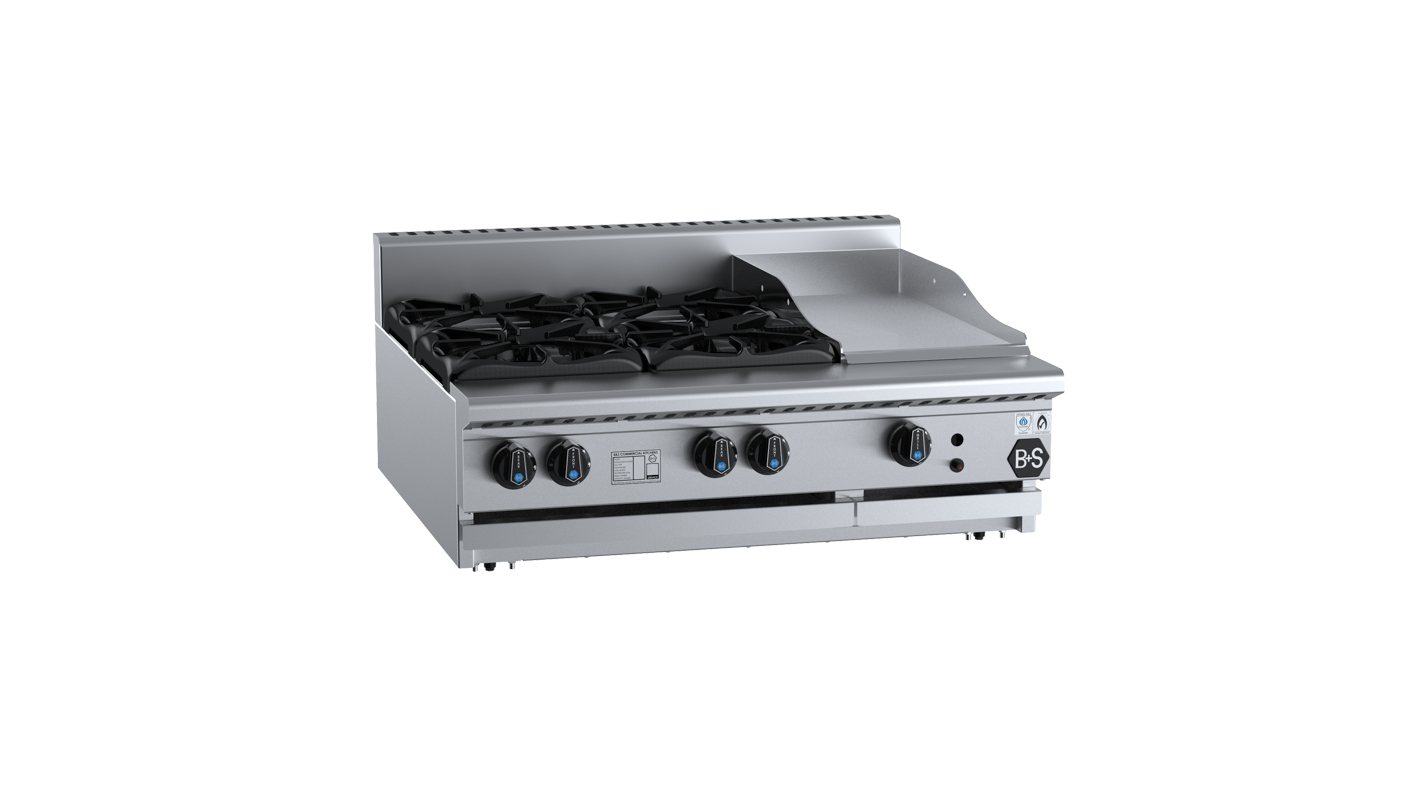

BT SB4 GRP3 BM MY2024

B+S Black Combination Four Open Burners 300mm Grill Plate Bench Mounted

BT-SB4-GRP3BM

Dimensions (L x W x H): 900mm x 840mm x 425mm

Gas Consumption (NG / LPG): 146Mj/h / 122Mj/h

Spec Sheet CAD Drawing

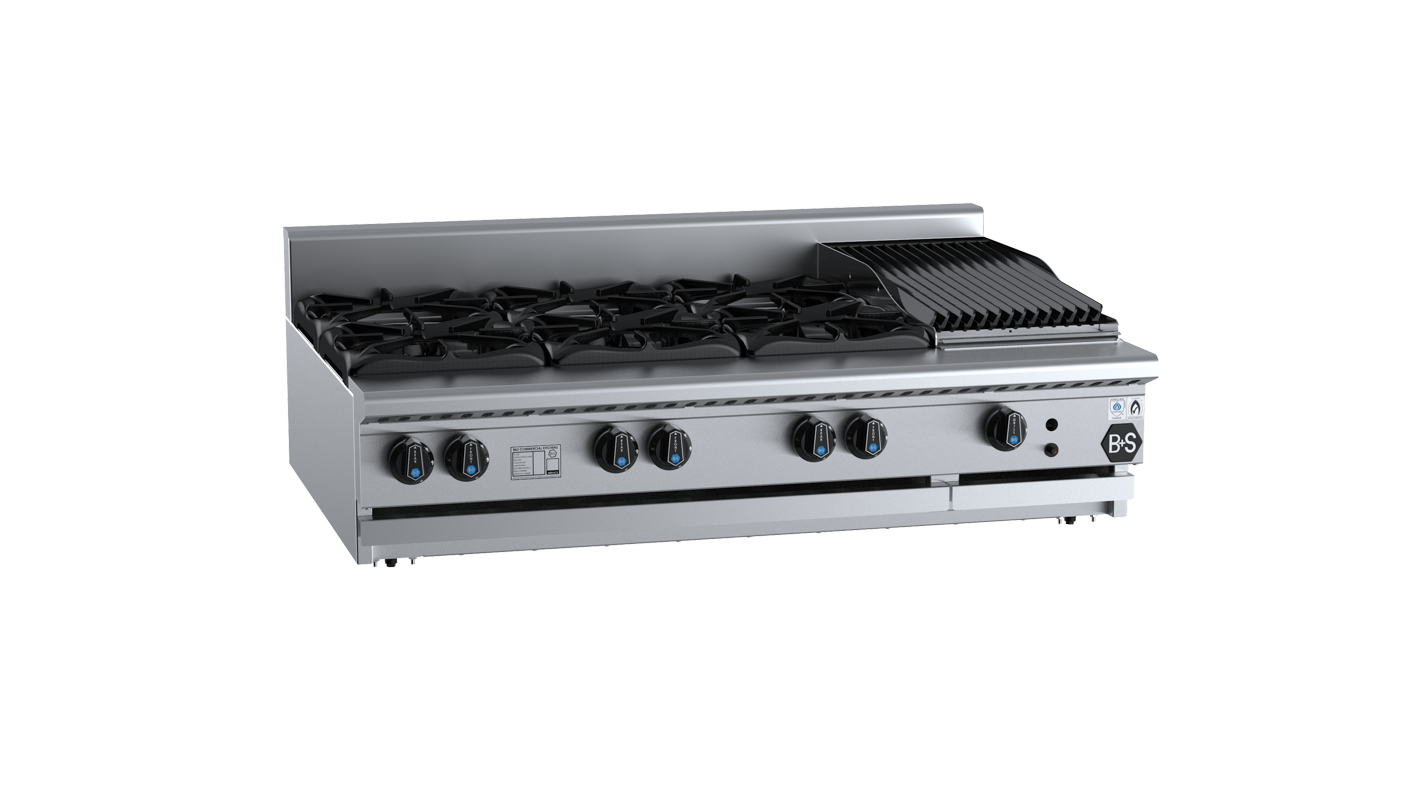

BT SB6 CBR3 BM MY2024

B+S Black Combination Six Open Burners 300mm Char Broiler Bench Mounted

BT-SB6-CBR3BM

Dimensions (L x W x H): 1200mm x 840mm x 425mm

Gas Consumption (NG / LPG): 220Mj/h / 180Mj/h

Spec Sheet CAD Drawing

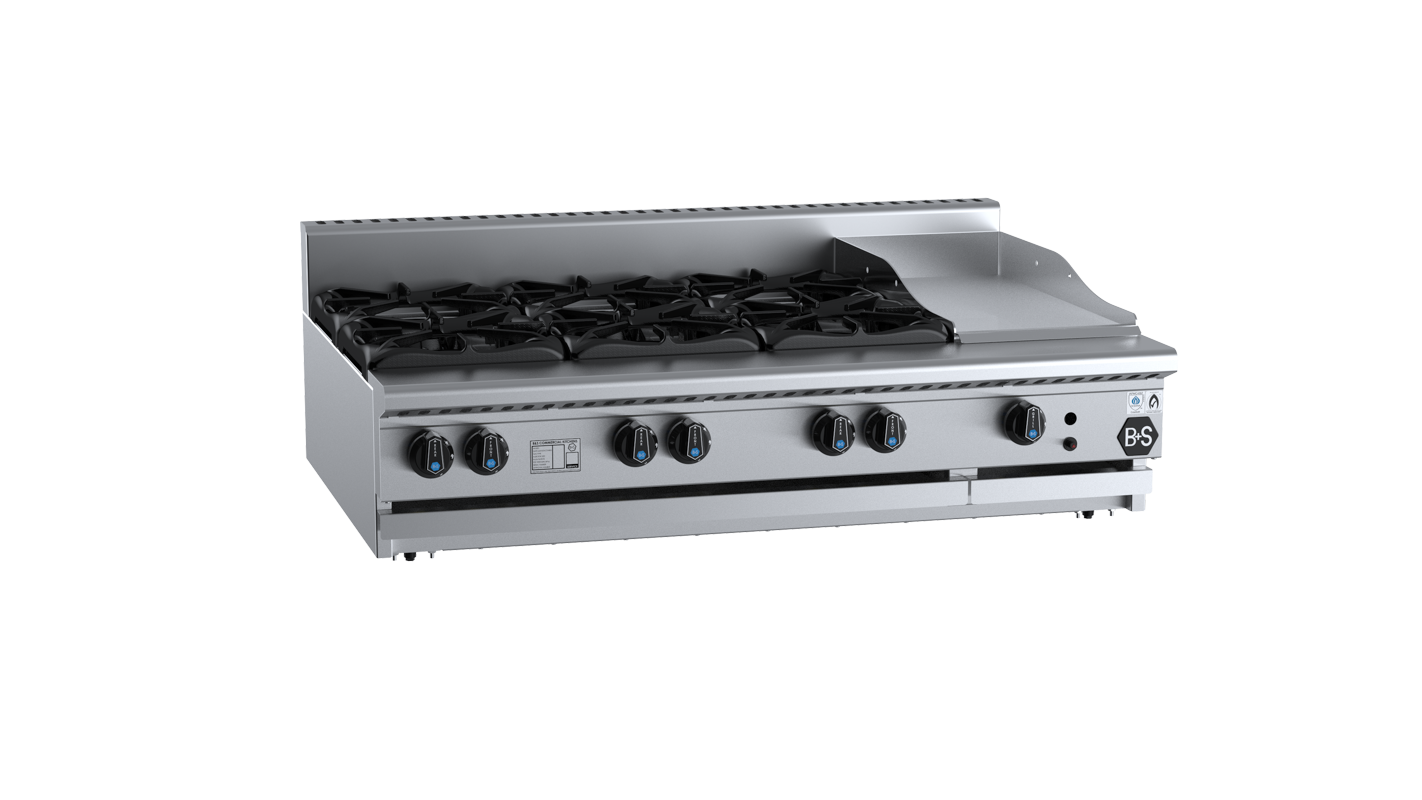

BT SB6 GRP3 BM MY2024

B+S Black Combination Six Open Burners 300mm Grill Plate Bench Mounted

BT-SB6-GRP3BM

Dimensions (L x W x H): 1200mm x 840mm x 425mm

Gas Consumption (NG / LPG): 208Mj/h / 172Mj/h

Spec Sheet CAD Drawing

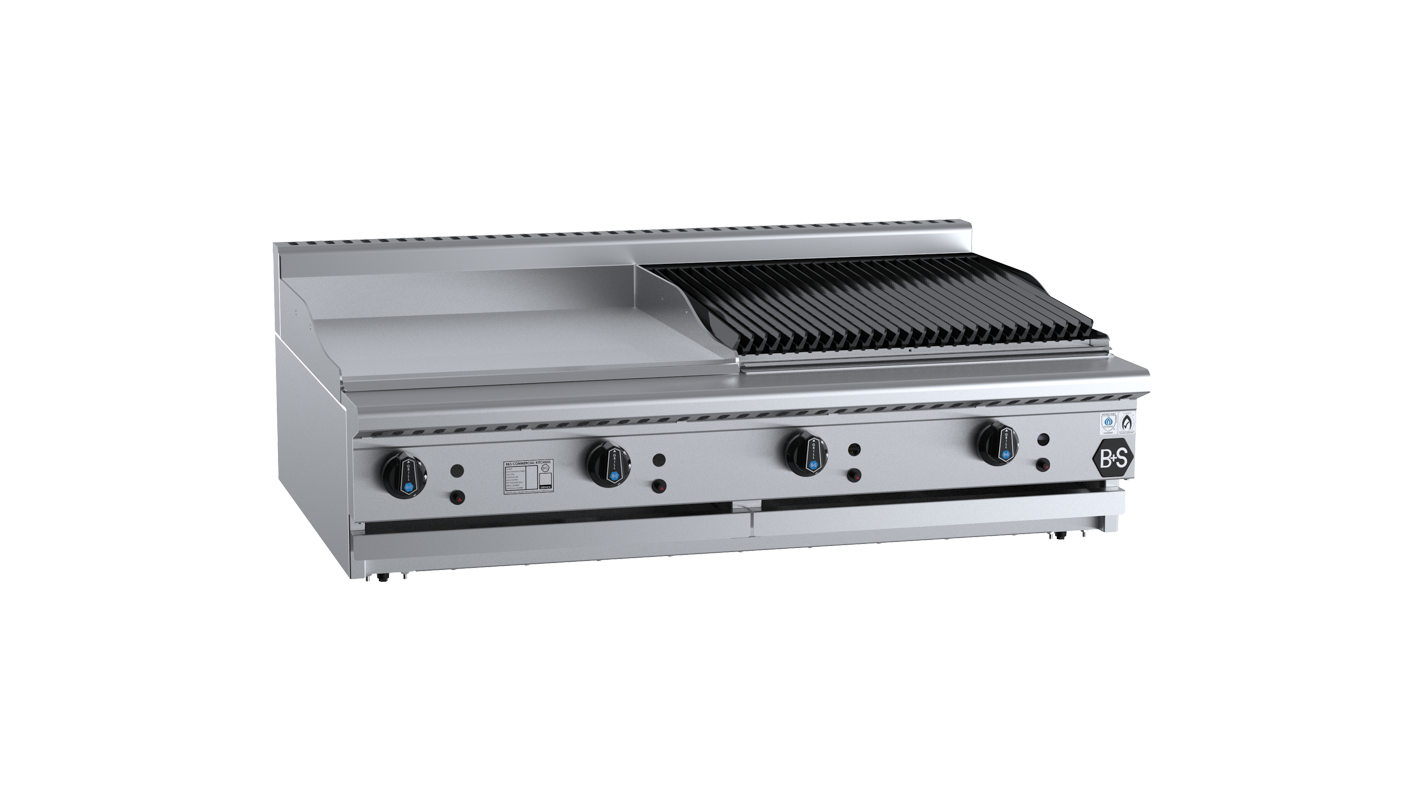

BT GRP6 CBR6 BM MY2024

B+S Black Combination 600mm Grill Plate 600mm Char Broiler Bench Mounted

BT-GRP6-CBR6BM

Dimensions (L x W x H): 1200mm x 840mm x 425mm

Gas Consumption (NG / LPG): 112Mj/h / 104Mj/h

Spec Sheet CAD Drawing

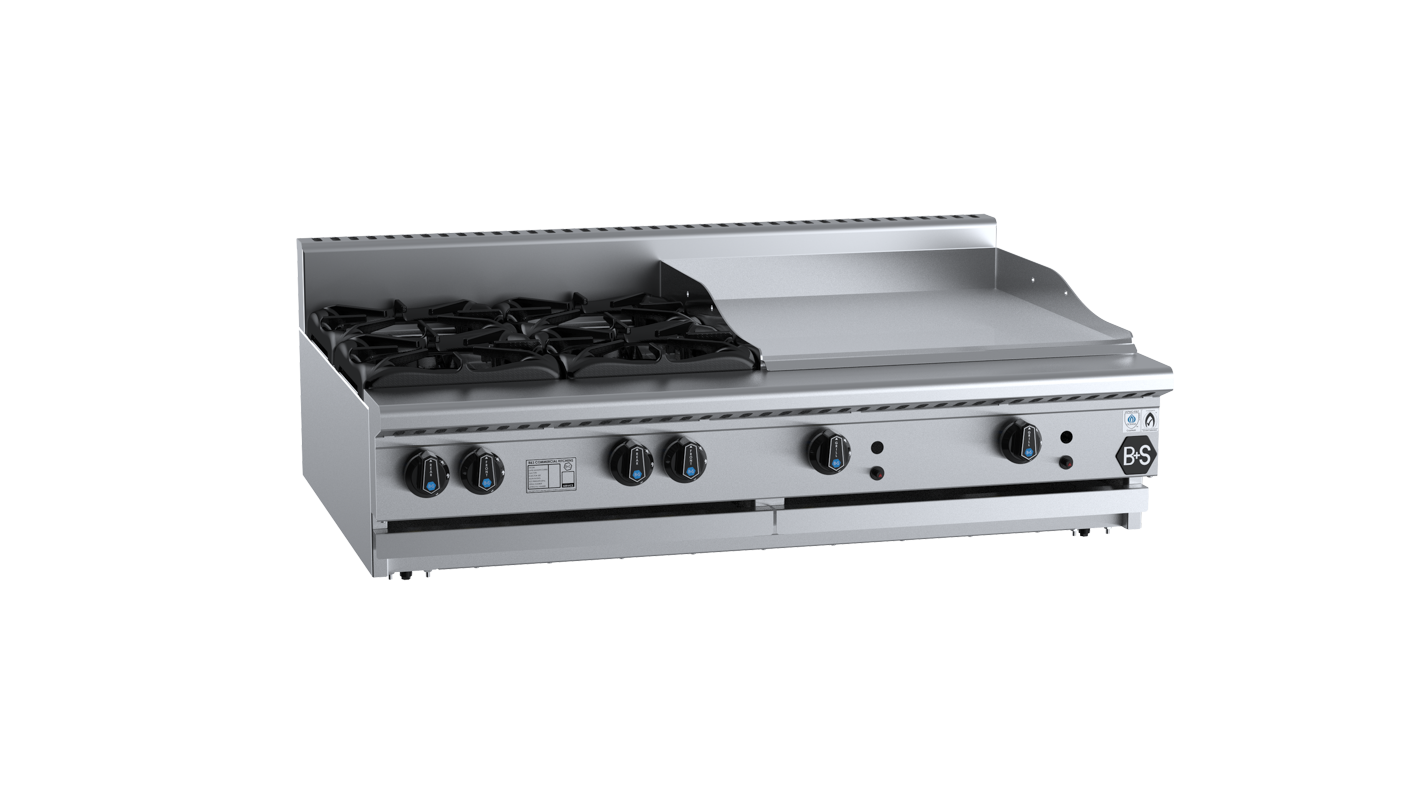

BT SB4 GRP6 BM MY2024

B+S Black Combination Four Open Burners 600mm Grill Plate Bench Mounted

BT-SB4-GRP6BM

Dimensions (L x W x H): 1200mm x 840mm x 425mm

Gas Consumption (NG / LPG): 168Mj/h / 144Mj/h

Spec Sheet CAD Drawing

Description
Additional information

Description

AISI Grade Stainless Steel

Heavy duty complete stainless steel frame with undershelf

31MJ black enameled Italian made burner (BT)

Heavy duty Italian made vitreous enameled trivets (BT)

Removable pressed top spillage tray for easy cleaning (BT)

Removable heavy duty two-piece burner for easy cleaning (BT)

22MJ aluminised tube burner per 300mm section (GRP)

Heavy duty mild steel grill plate — 12mm Thick (GRP)

Italian made top welded smooth finish design (GRP)

34MJ stainless steel U-Burner per 300mm section (CBR)

Heavy duty cast iron J-Grates & Radiant Hoods (CBR)

Reversible J-Grates allow for an inclined or flat cooking surface (CBR)

Flame Failure – Included as standard

Piezo ignition to pilot grill plate and char broiler burner

Multi-setting gas valve – Allows greater regulation of flame setting

Easy access to all components for servicing and adjustments

Easy to clean fat spillage trays

Natural or LPG Gas

24-month warranty

Additional information

Dimensions

N/A

Model

Combination 300mm Grill Plate & 300mm Char Broiler, Combination 300mm Grill Plate & 300mm Char Broiler Bench Mounted, Combination 300mm Grill Plate & 300mm Char Grill, Combination 300mm Grill Plate & 600mm Char Broiler, Combination 300mm Grill Plate & 600mm Char Broiler Bench Mounted, Combination 300mm Grill Plate & 600mm Char Grill, Combination 600mm Grill Plate & 300mm Char Broiler, Combination 600mm Grill Plate & 300mm Char Broiler Bench Mounted, Combination 600mm Grill Plate & 300mm Char Grill, Combination 600mm Grill Plate & 600mm Char Broiler, Combination 600mm Grill Plate & 600mm Char Broiler Bench Mounted, Combination 900mm Grill Plate & 300mm Char Broiler, Combination Four Open Burners & 300mm Char Broiler, Combination Four Open Burners & 300mm Char Broiler Bench Mounted, Combination Four Open Burners & 300mm Char Grill, Combination Four Open Burners & 300mm Grill Plate, Combination Four Open Burners & 300mm Grill Plate Bench Mounted, Combination Four Open Burners & 600mm Grill Plate, Combination Six Open Burners & 300mm Char Broiler, Combination Six Open Burners & 300mm Char Broiler Bench Mounted, Combination Six Open Burners & 300mm Char Grill, Combination Six Open Burners & 300mm Grill Plate, Combination Six Open Burners & 300mm Grill Plate Bench Mounted, Combination Two Open Burners & 300mm Char Broiler, Combination Two Open Burners & 300mm Char Broiler Bench Mounted, Combination Two Open Burners & 300mm Char Grill, Combination Two Open Burners & 300mm Grill Plate, Combination Two Open Burners & 300mm Grill Plate Bench Mounted, Combination Two Open Burners & 600mm Char Broiler, Combination Two Open Burners & 600mm Char Broiler Bench Mounted, Combination Two Open Burners & 600mm Char Grill, Combination Two Open Burners & 600mm Grill Plate, Combination Two Open Burners & 600mm Grill Plate Bench Mounted, Combination Four Open Burners & 600mm Grill Plate Bench Mounted

↑
